Kia Sorento: TPMS Receiver Replacement
Kia Sorento (XM, 2011-2015) Service Manual / Suspension System / Tire Pressure Monitoring System / TPMS Receiver Replacement
When the receiver first arrives for replacement:
|
It is important to make sure that the correct receiver is used
to replace the faulty part i.e. it must be Low Line (95800-1U00) in
order to have the correct inflation warning thresholds set.
|
| 1. |
Disconnect vehicle battery (-)cable.
|
| 2. |
Remove the glove box housing.
(Refer to Body - "Glove Box Housing")
|
| 3. |
Remove faulty part and fit bracket assembly to new part.
|
| 4. |
Secure new part to vehicle and fit connector.
|
| 5. |
Re-connect battery and turn Ignition on.

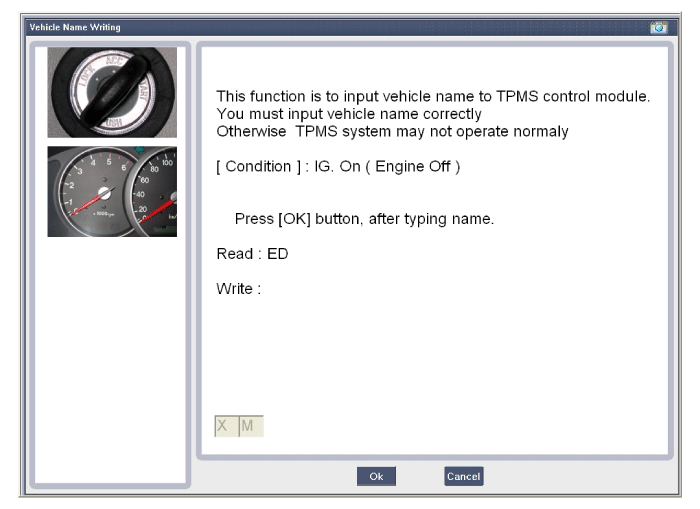

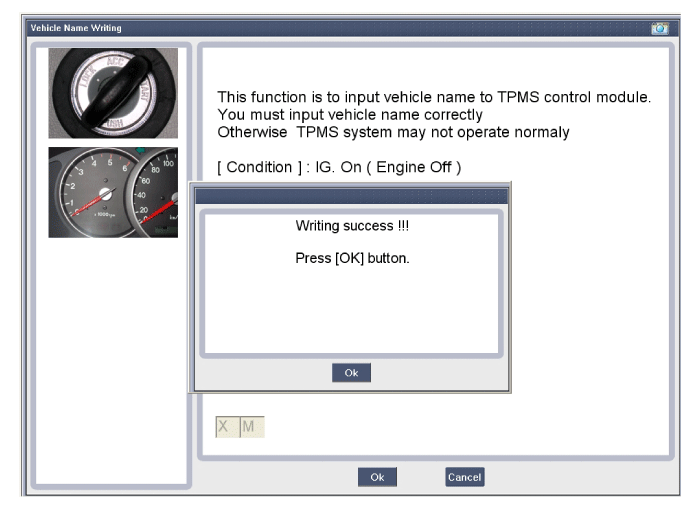

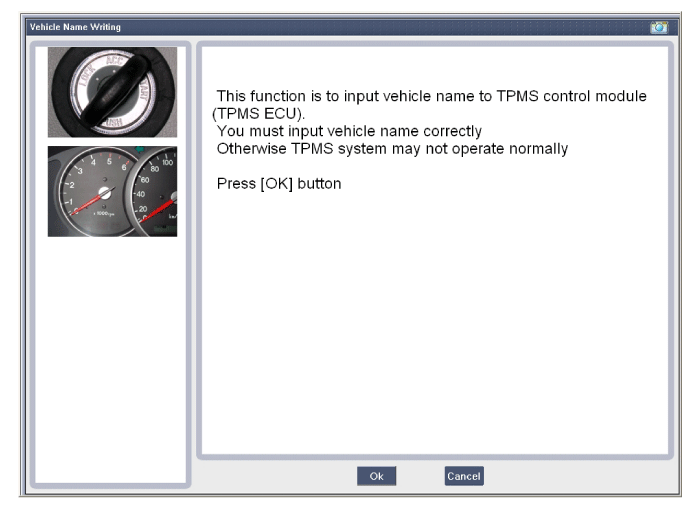

Vechicle Name Writing

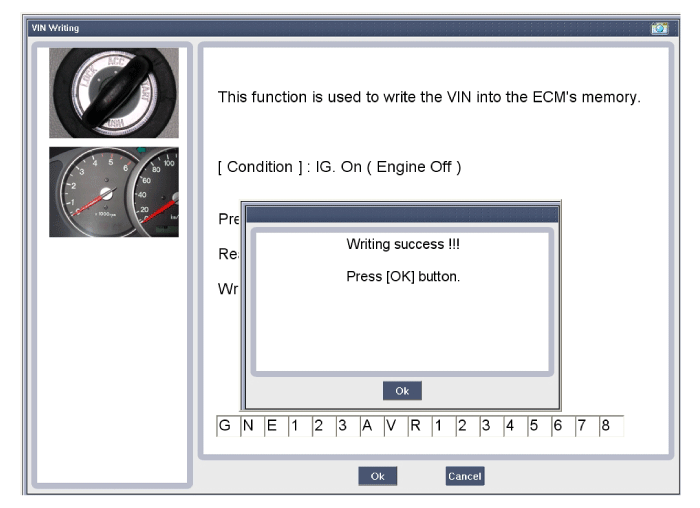

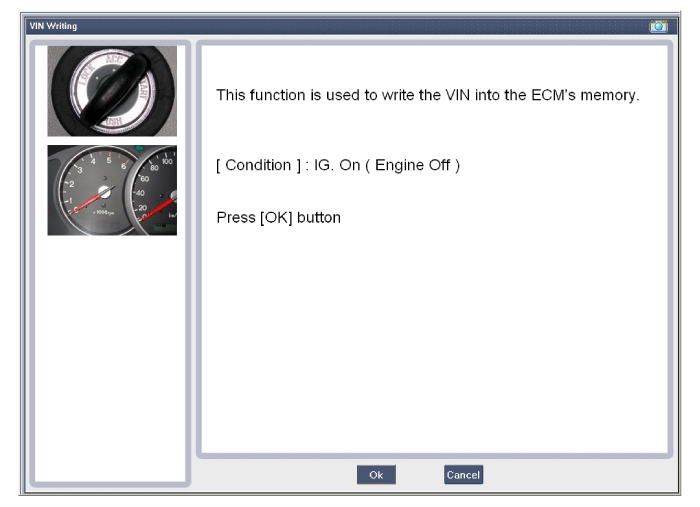

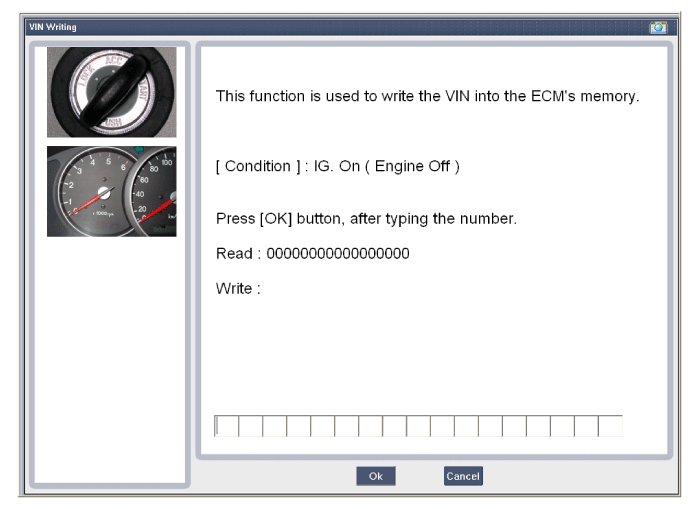

VIN Writing
|
1.
General Function
A.
Auto learn takes place only once per Ignition cycle.
B.
On successful completion.
...
TPMS Receiver Operation
...
