Kia Sorento: Trouble Symptom Charts - Cruise Control System - Engine Electrical SystemKia Sorento: Trouble Symptom Charts

Kia Sorento (XM, 2011-2015) Service Manual / Engine Electrical System / Cruise Control System / Trouble Symptom Charts

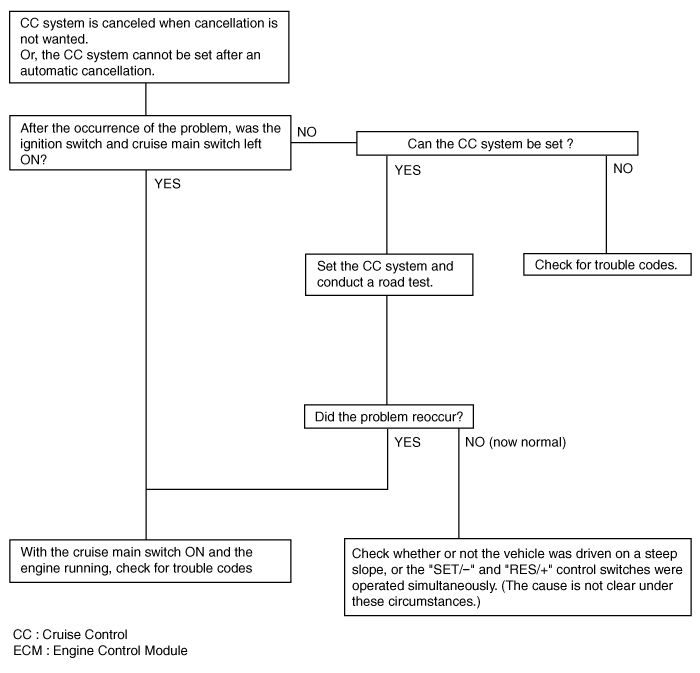

Trouble Symptom 1

Trouble Symptom 2
Trouble symptom
Probable cause
Remedy
The set vehicle speed varies greatly upward or downward
"Surging" (repeated alternating acceleration and deceleration) occurs after setting
Malfunction of the vehicle speed sensor circuit
Repair the vehicle speed sensor system, or replace the part
Malfunction of ECM
Check input and output signals at ECM

Trouble Symptom 3
Trouble symptom
Probable cause
Remedy
The CC system is not canceled when the brake pedal is depressed
Damaged or disconnected wiring of the brake pedal switch
Repair the harness or replace the brake pedal switch
Malfunction of the ECM signals
Check input and output signals at ECM

Trouble Symptom 4
Trouble symptom
Probable cause
Remedy
The CC system is not canceled when the shift lever is moved to the "N" position (It is canceled, however, when the brake pedal is depressed)
Damaged or disconnected wiring of inhibitor switch input circuit
Repair the harness or repair or replace the inhibitor switch
Improper adjustment of inhibitor switch
Malfunction of the ECM signals
Check input and output signals at ECM

Trouble Symptom 5
Trouble symptom
Probable cause
Remedy
Cannot decelerate (coast) by using the "SET/
