Kia Sorento: Troubleshooting - Power Windows - Body Electrical SystemKia Sorento: Troubleshooting

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Power Windows / Troubleshooting

1.
No windows operate from the main switch on the driver's door.

2.
Driver's side window does not operate.

3.

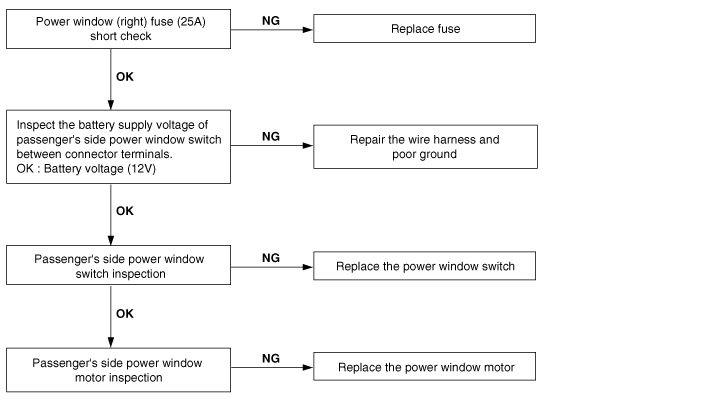

Passenger's side window does not operate.

Power Window Switch Inspection
Main Power Window Switch Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim and power window switch. ...
