Kia Sorento: Component Location

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Component Location

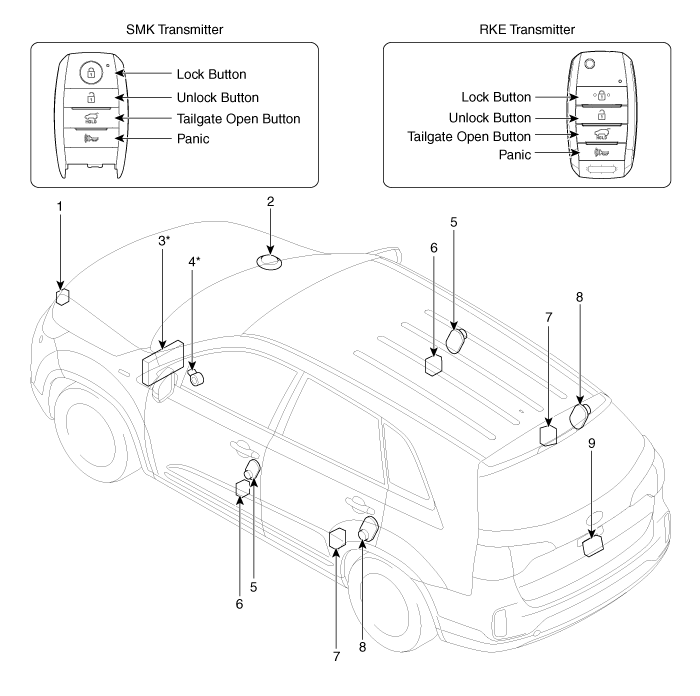

1. Hood switch
2. Burglar horn
3. IPM & RF receiver
4. Key warning switch
5. Front door switch

6. Front door lock actuator & switch
7. Rear door lock actuator & switch
8. Rear door switch
9. Tailgate lid switch

1. Antenna
2. IPM connector

3. Antenna bracket

Specifications

Item Specification Rated voltage DC 3V Temperature range -4°F ~ 140°F (-20°C ~ +60°C) RF Modulation method FSK LF Mo...

Description

Burglar Alarm State [B/A State] B/A State Description DISARM 1. In "DISARM" state, no vehicle start inhibition. So, when ...
