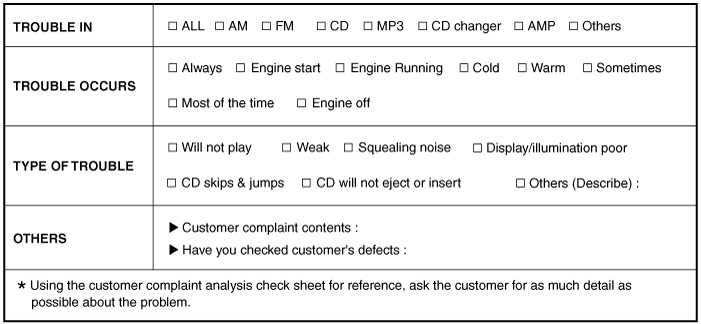

Kia Sorento: Troubleshooting, Customer Complaint Analysis Check Sheet
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Audio / Troubleshooting, Customer Complaint Analysis Check Sheet

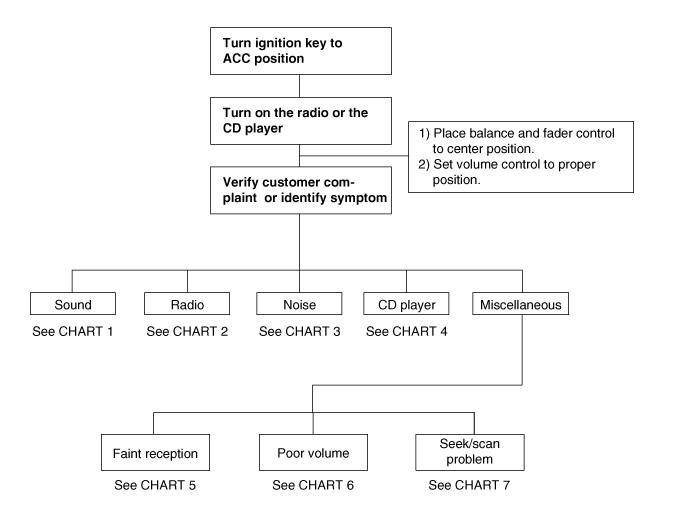

There are six areas where a problem can occur: wiring harness, the radio,
the CD player, and speaker. Troubleshooting enables you to confine the problem
to a particular area.

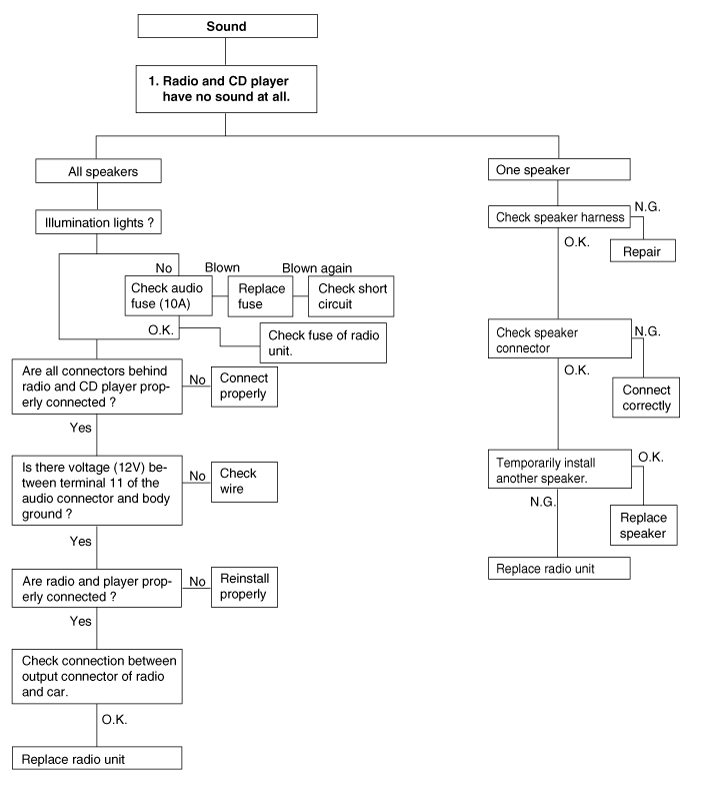

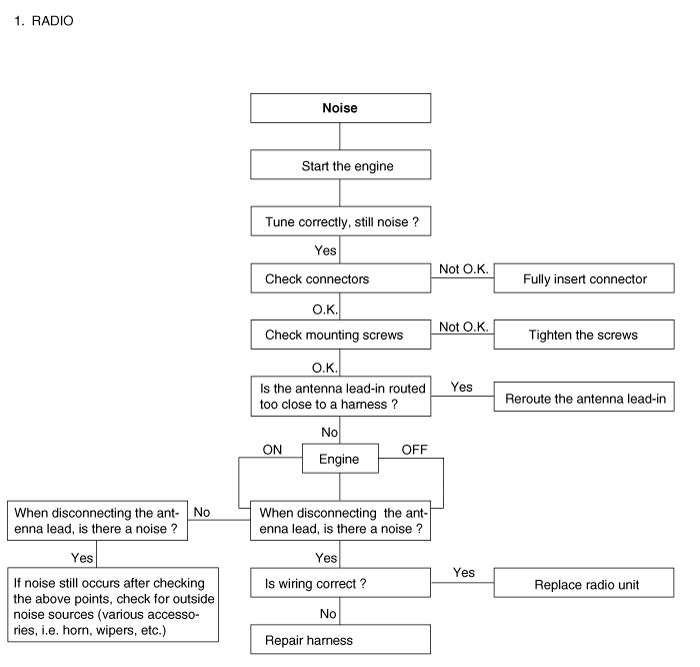

Chart 1

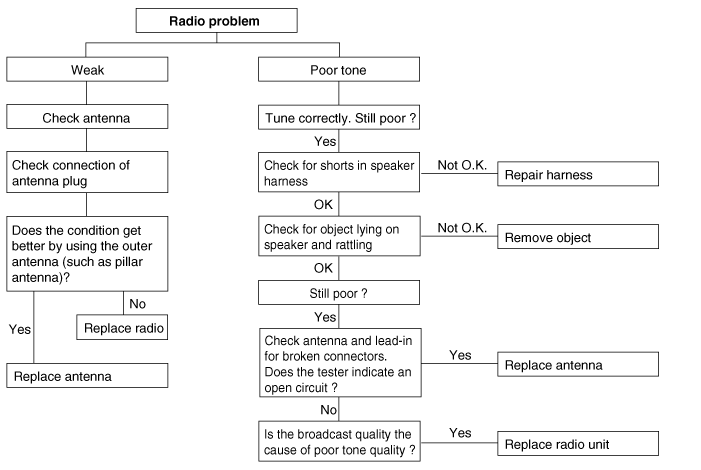

Chart 2

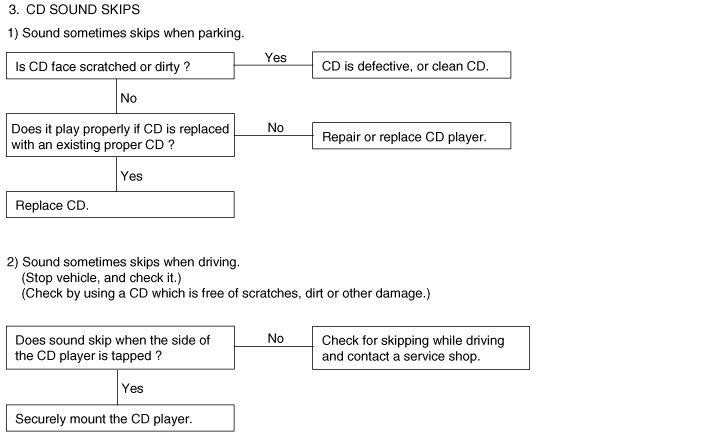

Chart 3

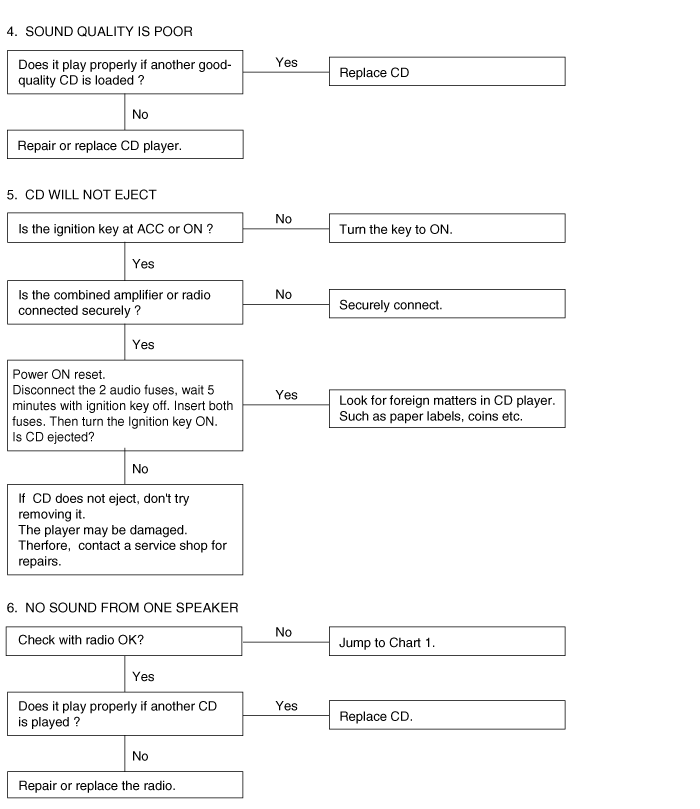

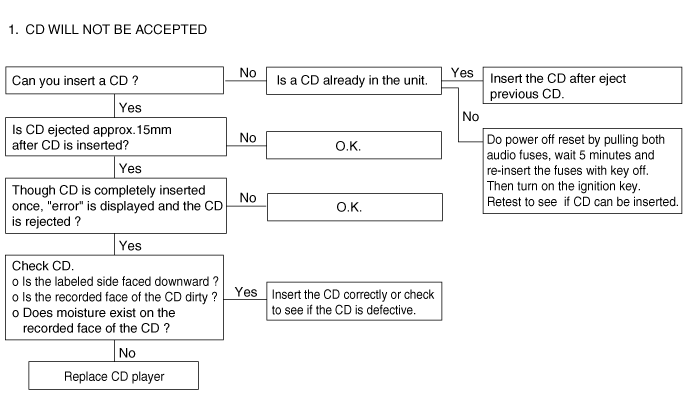

Chart 4
Chart 5

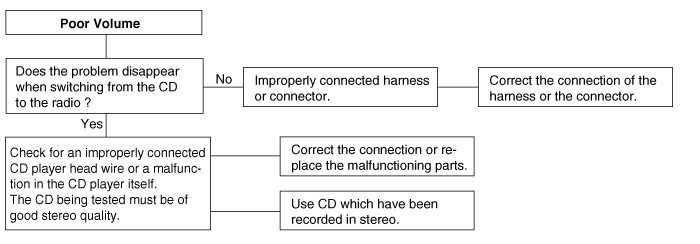

Chart 6

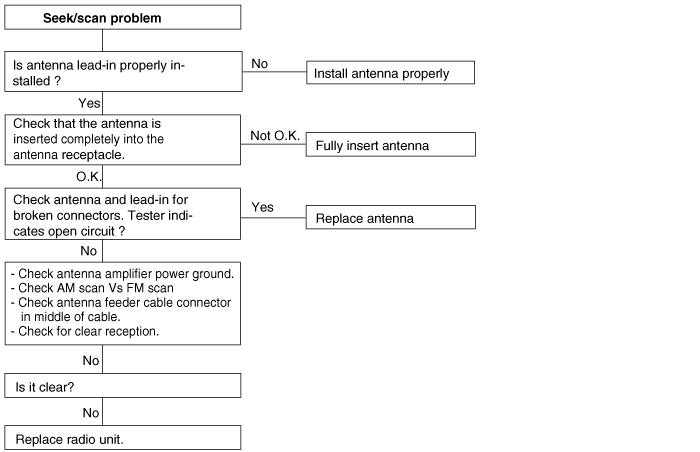

Chart 7
