Kia Sorento: Trunk Trim Replacement - Exterior - Body (Interior and Exterior)Kia Sorento: Trunk Trim Replacement

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Trunk Trim Replacement

Luggage Side Trim Replacement [7 seats]

•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the second row seat assembly.
2.
Remove the third row seat assembly.
3.
Remove the second row seat belt lower anchor.
4.
Remove the third row seat belt lower anchor.
5.
Remove the partition trim.
6.
Remove the rear transverse trim.
7.
After loosening the mounting screws, then remove the luggage side trim.
8.
Install in the reverse order of removal.

•
Replace any damaged clips.

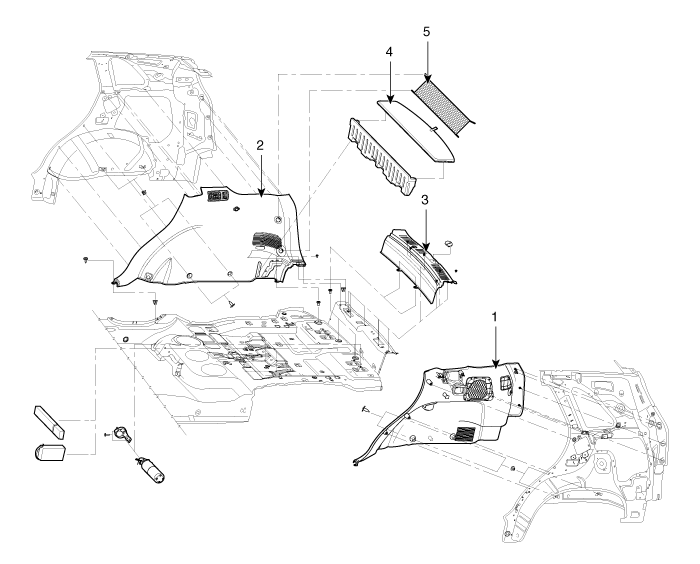

1. Luggage side trim (LH)
2. Luggage side trim (RH)
3. Transverse trim
 4. Luggage floor box
5. Luggage net

Luggage Side Trim Replacement [5 seats]

•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the second row seat assembly.
2.
Remove the second row seat belt lower anchor.
3.
Remove the luggage floor box.
4.
Remove the rear transverse trim.
5.
After loosening the mounting screws, then remove the luggage side trim.
6.
Install in the reverse order of removal.

•
Replace any damaged clips.

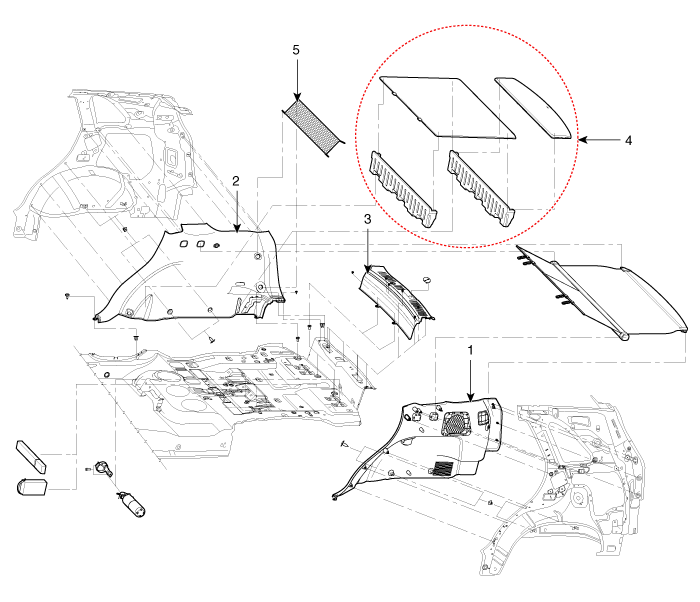

1. Luggage side trim (LH)
2. Luggage side trim (RH)
3. Transverse trim
 4. Luggage floor box partition assembly
5. Luggage net
