Kia Sorento: Under Body (2WD)
Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Body Dimensions / Under Body (2WD)

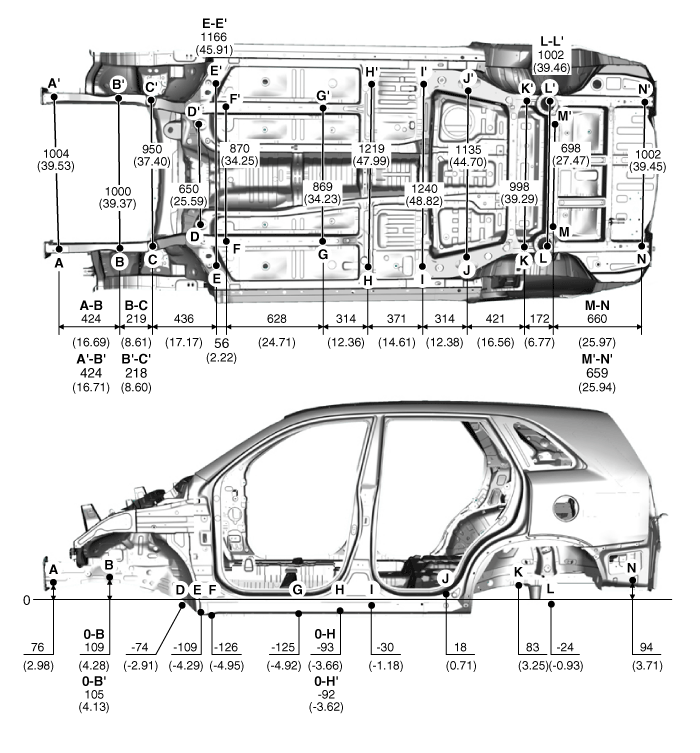

| Projected Dimensions |
| * These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |

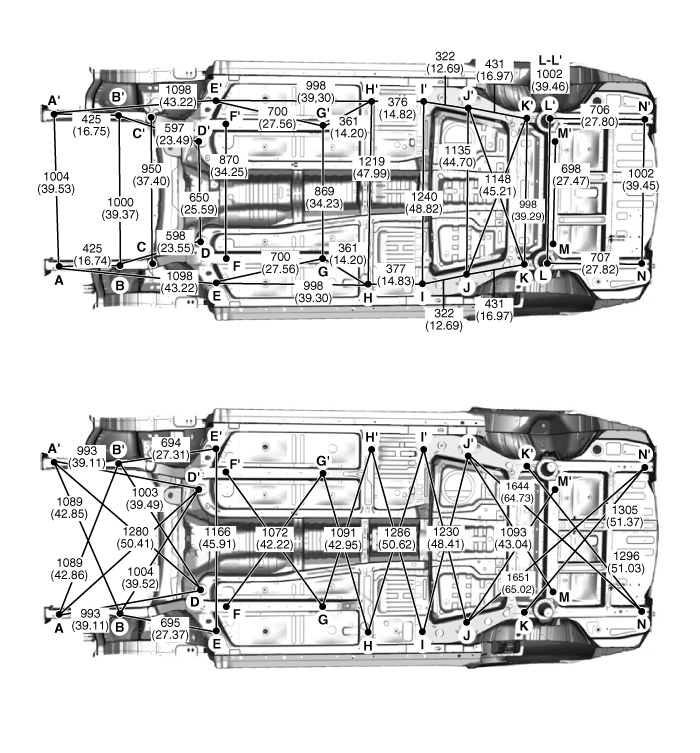

| Actual-Measurement Dimensions |
| * These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
|
|
|
|
| Front side member tooling hole (Ø25) |
Front side member tooling hole (Ø25) |
Side cover mounting hole (Ø11) |
|
|
|
|
| Side cover mounting hole (Ø11) |
Front sub frame mounting bolt |
Front sub frame mounting hole (Ø18) |
|
|
|
|
| Floor under cover mounting hole (Ø6.6) |
Front sub frame mounting hole (Ø11) |
Front side member tooling hole (Ø14) |
|
|
|
|
| Floor under cover mounting hole (Ø7) |
Floor under cover mounting hole (Ø7) |
Rear trailing arm mounting hole (Ø19) |
|
|
|
|
| Rear sub frame mounting hole (Ø22) |
Rear spring mounting hole (Ø9) |
Rear sub frame mounting bolt |
|
|
||
| Rear floor side member tooling hole (Ø14) |
