Kia Sorento: Valve Body Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Hydraulic System / Valve Body Component Location

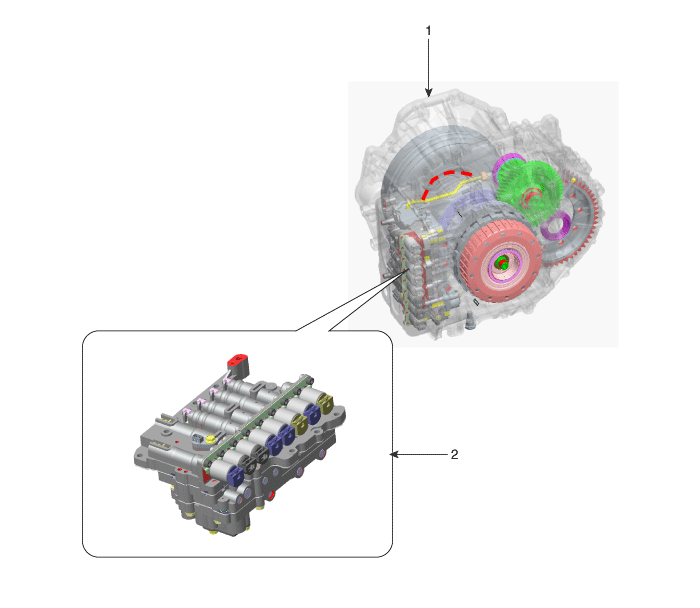

| 1. Automatic transaxle 2. Valve body assembly |

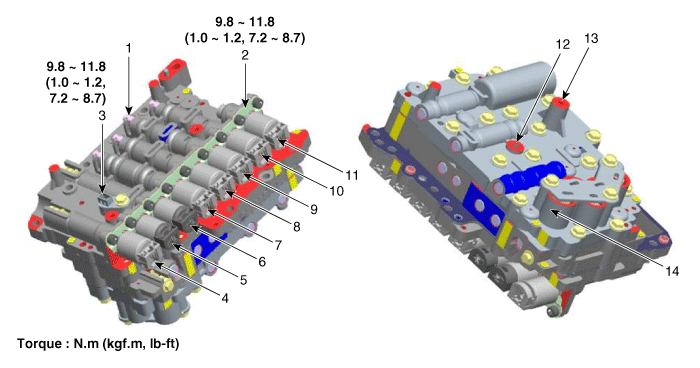

| 1. Pressure Control Valve(PCV) adjust screw 2. Solenoid valve bracket 3. Oil temperature sensor 4. Line Pressure Control Solenoid Valve 5. SS-A Solenoid Valve(ON/OFF) 6. SS-B Solenoid Valve(ON/OFF) 7. Overdrive Clutch Control Solenoid Valve(OD/C) |
8. Underdrive Brake Control Solenoid Valve(UD/B) 9. 26 Brake Control Solenoid Valve(26/B) 10. 35R Clutch Control Solenoid Valve(35R/C) 11. Torque Converter Control Solenoid Valve (T/CON) 12. LR/B pressure fiow hole 13. UD/B pressure fiow hole 14. Accumulator |

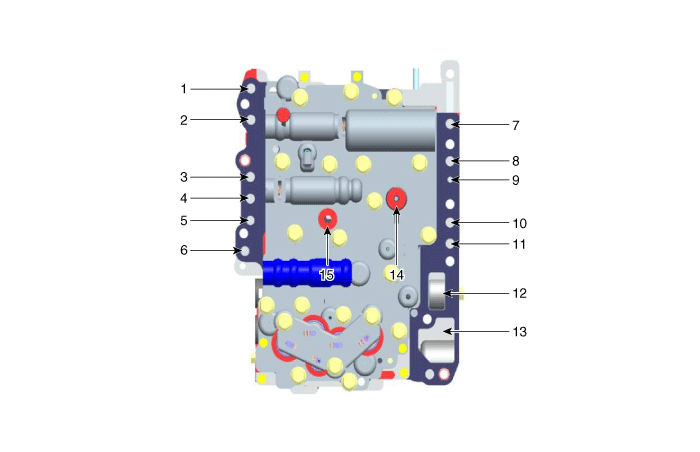

Valve Body Flow
| 1. To cooler 2. From cooler 3. Lubrication(rear) 4. OD Clutch pressure 5. Reducing pressure (red2) 6. Reducing pressure (red1) 7. Damper release pressure 8. Damper apply pressure |
9. Lubrication(front) 10. 35R Clutch pressure 11. 26 Brake pressure 12. From oil pump 13. To oil pump 14. Underdrive(UD) Brake pressure 15. Low & reverse pressure |
Valve Body
The valve body is essential to automatic transaxle control and consists
of various valves used to control the oil feed from the oil pump. Specifically,
these valves consist of pressure regulator...
Valve Body Removal
1.
Remove the air duct.
(Refer to Engine Mechanical System - "Air cleaner")
2.
Remove the battery and the battery tray.
(Ref...
