Kia Sorento: ATF Warmer Component
Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Hydraulic System / ATF Warmer Component

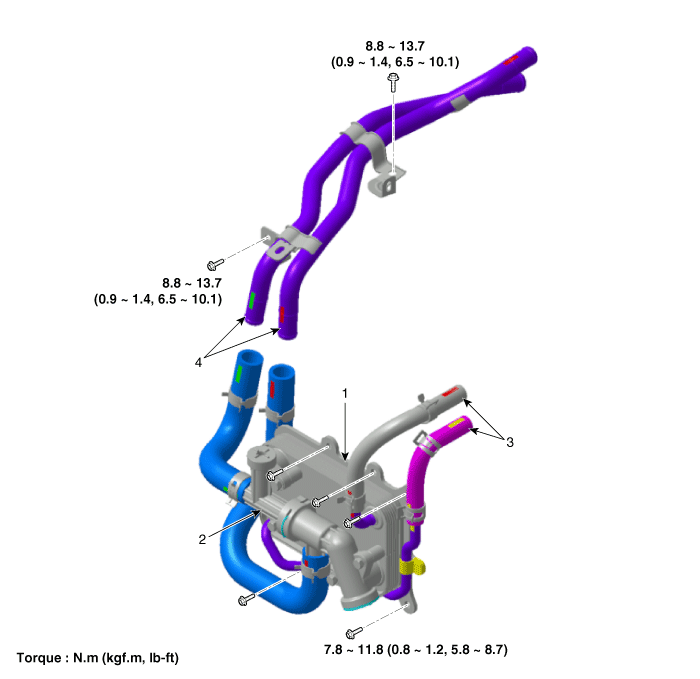

| 1. ATF Warmar 2. Bypass valve |
3. ATF hose & pipe 4. Coolant hose & pipe |
1. ATF Warmar
2. Bypass valve
3. ATF hose & pipe
4. Coolant hose & pipe...
ATF Warmer Component Location
1.
Drain the coolant.
(Refer to Engine Mechanical System - "Coolant")
2.
Remove the air cleaner assembly and air duct.
(Refer to ...
ATF Warmer Removal
