Kia Sorento: ATF Warmer Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Hydraulic System / ATF Warmer Component Location

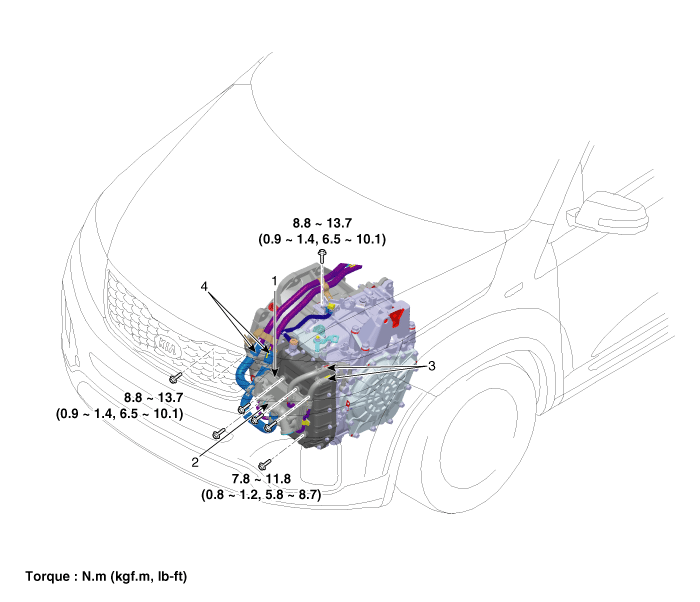

| 1. ATF Warmar 2. Bypass valve |
3. ATF hose & pipe 4. Coolant hose & pipe |
The ATF warmer is mounted on the valve body cover to reduce oil viscosity
friction by increasing oil temperature under cold condition, which in turn improves
fuel efficiency. It is serial mounte...
ATF Warmer Description
1. ATF Warmar
2. Bypass valve
3. ATF hose & pipe
4. Coolant hose & pipe...
ATF Warmer Component
