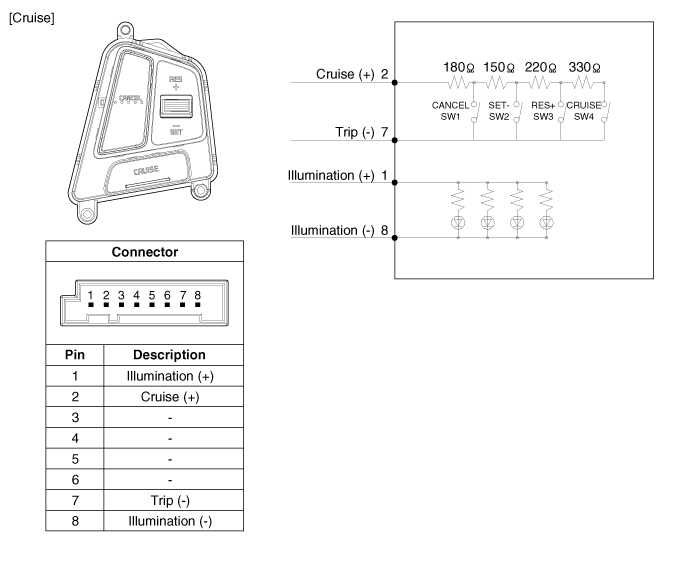

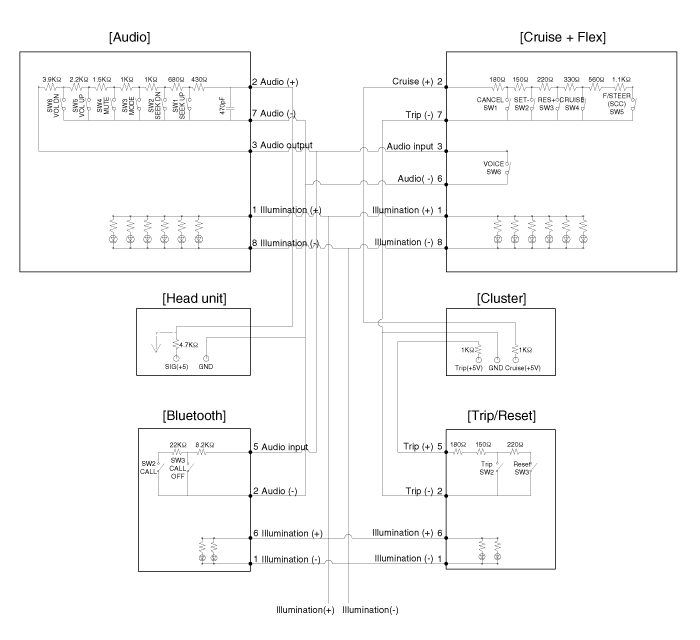

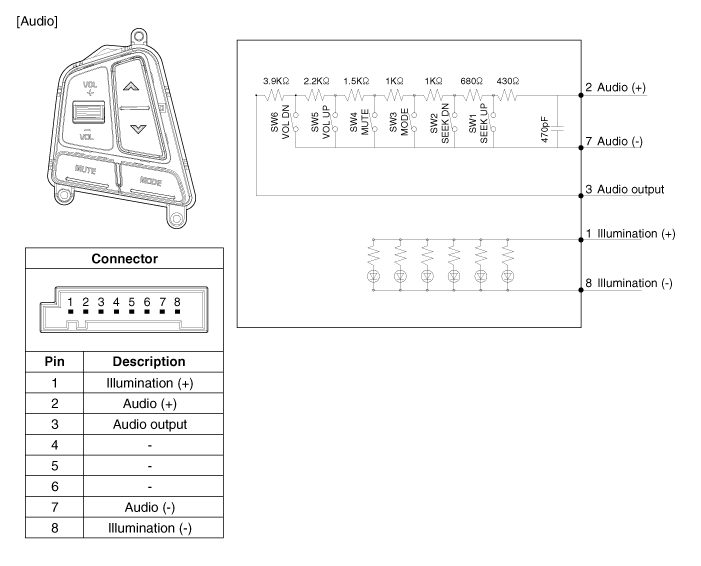

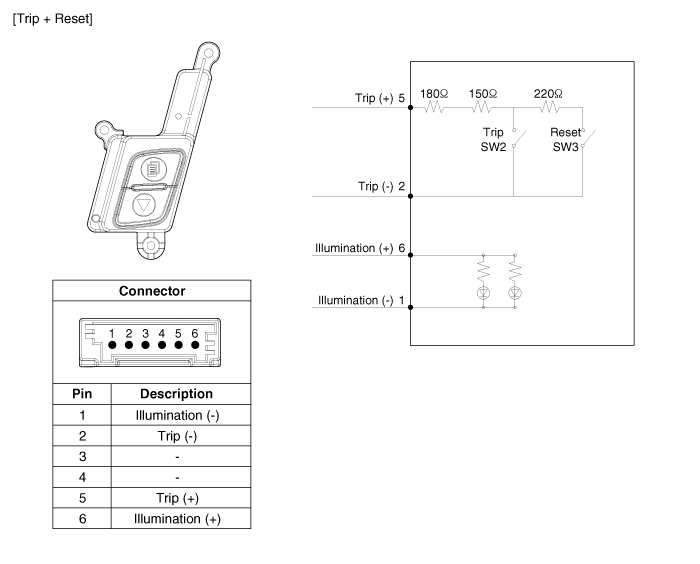

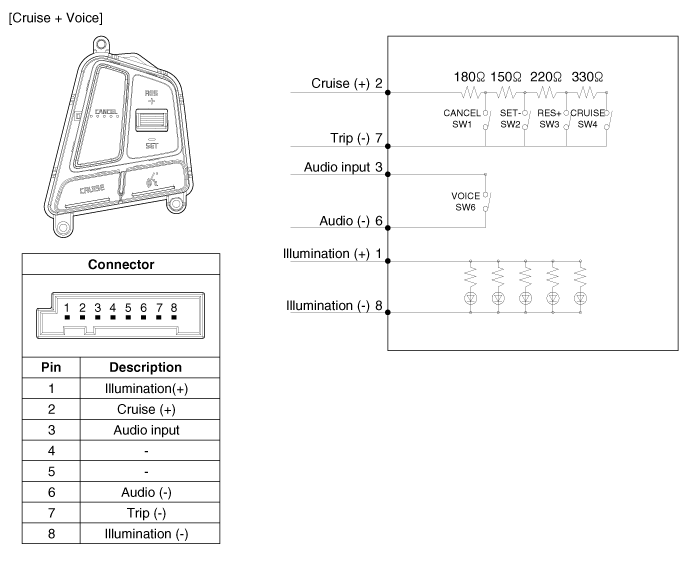

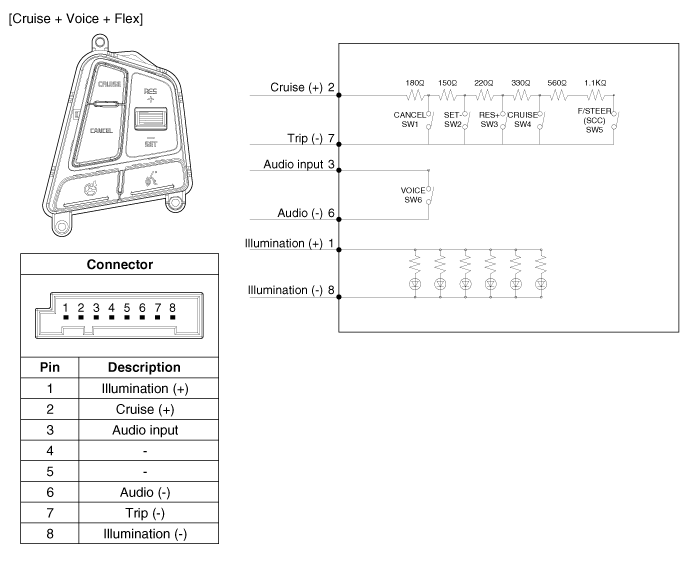

Kia Sorento: Audio Remote Control Circuit Diagram - Audio - Body Electrical SystemKia Sorento: Audio Remote Control Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Audio / Audio Remote Control Circuit Diagram

Audio Remote Control Components
...
Audio Remote Control Inspection
1. Check for resistance between No.2 and No.7 terminals in each switch position. [Audio System] Switch Connector terminal Resi...
