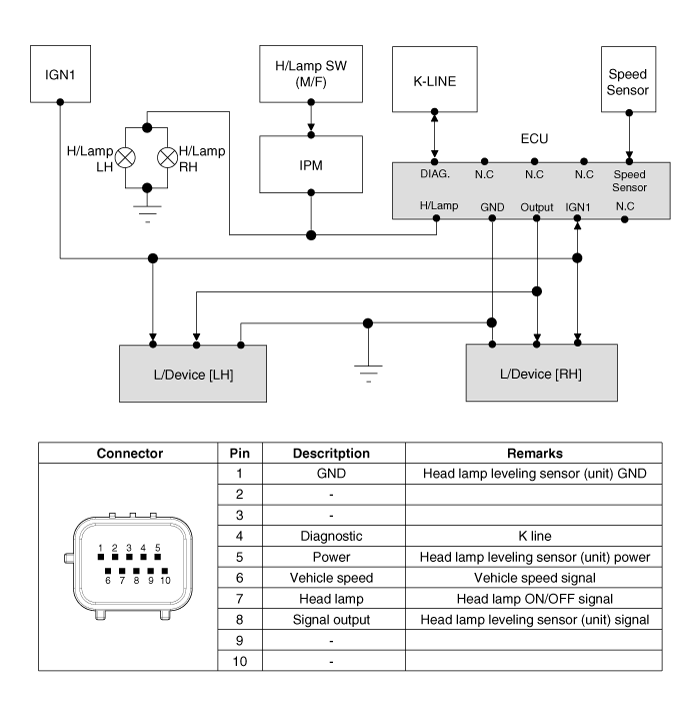

Kia Sorento: Auto Head lamp leveling Unit Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Head lamp leveling Device / Auto Head lamp leveling Unit Circuit Diagram
Component Location
1. Head lamp leveling sensor & unit
2. Head lamp leveling actuator...
Auto Head lamp leveling Unit Description
According to driving environment and loading state of vehicle, head lamp
lighting direction is changed to keep the driver's visibility range and to protect
the driver's vision from glare...
