Kia Sorento: AVN Head Unit Components - AVN System - Body Electrical SystemKia Sorento: AVN Head Unit Components

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / AVN System / AVN Head Unit Components

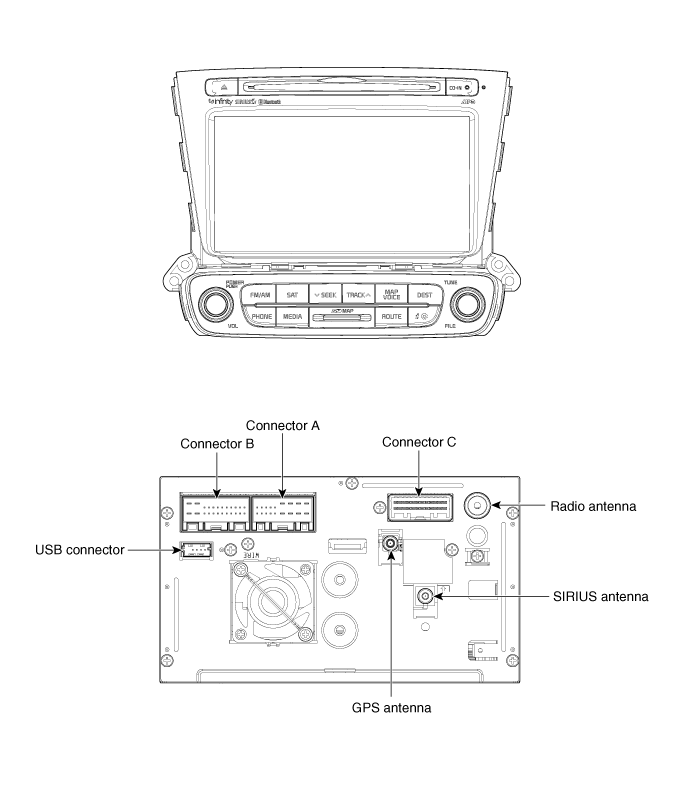

AVN (A/V & Navigation) Head Unit Connector

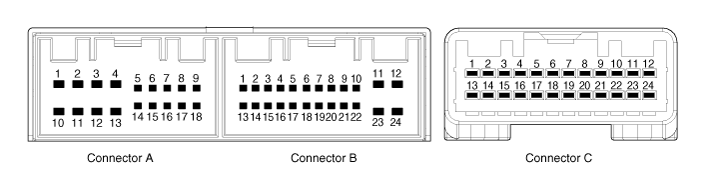

Connector Pin Information
No.
 Connector A
 Connector B
 Connector C
1
 -
 MM CAN High
 -
2
 Parking V VIDEO
 Ground (Non TMU) / - (TMU)
 -
3
 Parking V GND
 Parking (MT)
 -
4
 Rear camera shield ground
 Steering wheel remocon
 -
5
 SPDIF ground
 -
 -
6
 SPDIF (+)
 -
 -
7
 ALT L
 -
 -
8
 Illumination (+)
 AUX right input
 -
9
 R position
 AUX ground
 -
10
 -
 MIC (+)
 Fuel indicator
11
 Rear camera power
 ACC (+)
 Door open
12
 Navigation voice (-)
 Battery (+)
 -
13
 Navigation voice (+)
 MM CAN Low
 -
14
 -
 Auto light
 -
15
 SPDIF (-)
 P position (AT)
 -
16
 Door key unlock
 Vehicle speed
 -
17
 Illumination (-)
 Key ground
 -
18
 Antenna remocon power
 -
 -
19
 　
 -
 -
20
 AUX detect
 -
21
 AUX left input
 -
22
 MIC (-)
 -
23
 Power ground
 Ground
24
 Power ground
 -

Description
Limitations Of The Navigation system GPS Signal Reception State As the GPS satellite frequency is received/transmitted in straight lines, reception may not work if hiding devices are placed...
AVN Head Unit Removal
   • Take care not to scratch the center fascia panel and related parts. • ...
