Kia Sorento: Basic Troubleshooting - Engine Control / Fuel SystemKia Sorento: Basic Troubleshooting

Kia Sorento (XM, 2011-2015) Service Manual / Engine Control / Fuel System / Basic Troubleshooting

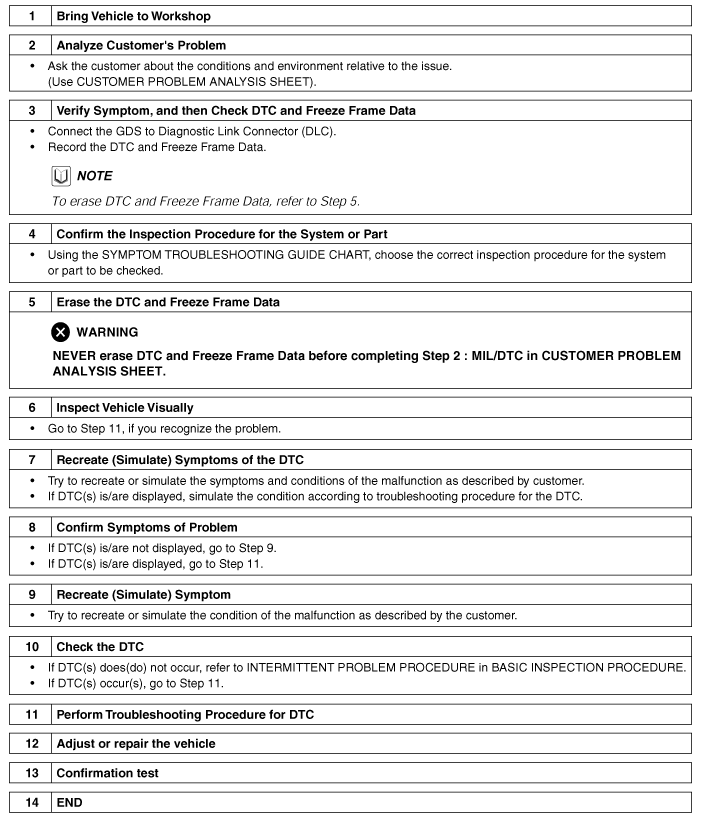

Basic Troubleshooting Guide

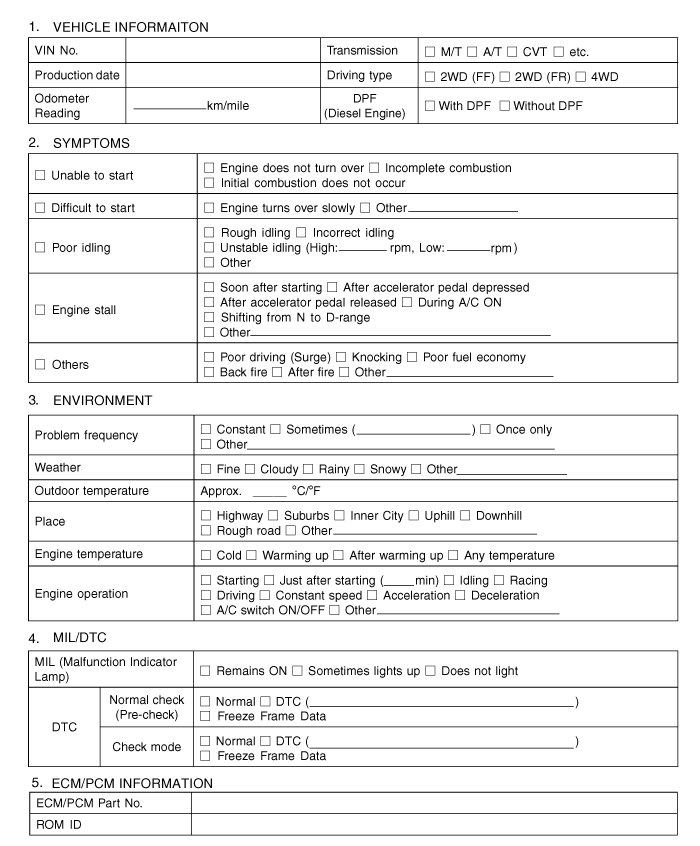

Customer Problem Analysis Sheet

Basic Inspection Procedure
Measuring Condition of Electronic Parts' Resistance
The measured resistance at high temperature after vehicle running may be high or low. So all resistance must be measured at ambient temperature (20
    Item Illustration Application Fuel Pressure Gauge (09353-24100) Measuring the fuel line pressure Fuel Pressure Gauge Adapter (09353...
