Kia Sorento: BJ Boot Components
Kia Sorento (XM, 2011-2015) Service Manual / Driveshaft and axle / Driveshaft Assembly / BJ Boot Components

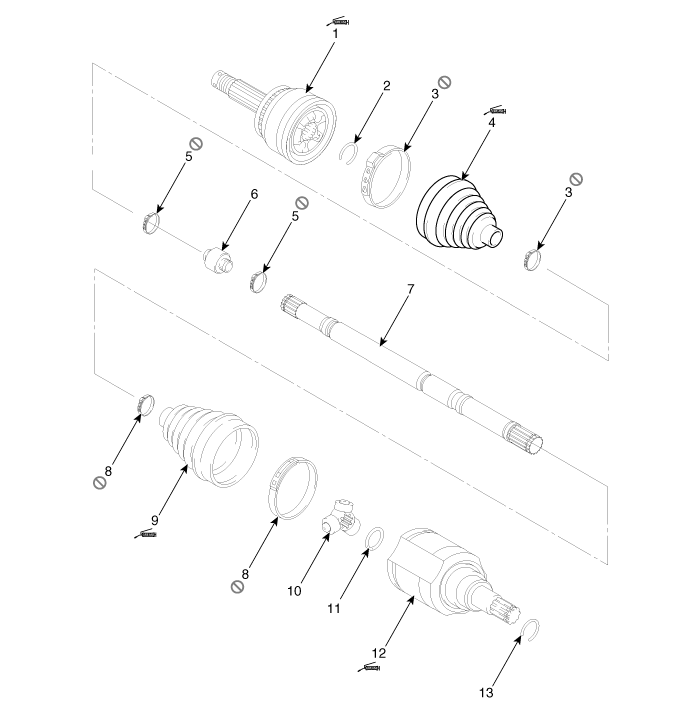

| 1. BJ assembly 2. BJ circlip 3. BJ boot band 4. BJ boot |
5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band |
9. TJ boot 10. Spider assembly 11. Retainer ring 12. TJ housing |
13. Housing circlip |
1.
Apply soap powder on the shaft to prevent being damaged between
the shaft spline and the dynamic damper.
2.
Install the dynamic damper.
...
Dynamic Damper Installation
1.
Remove the front driveshaft.
(Refer to Driveshaft Assembly -...
BJ Boot Removal and Installation
