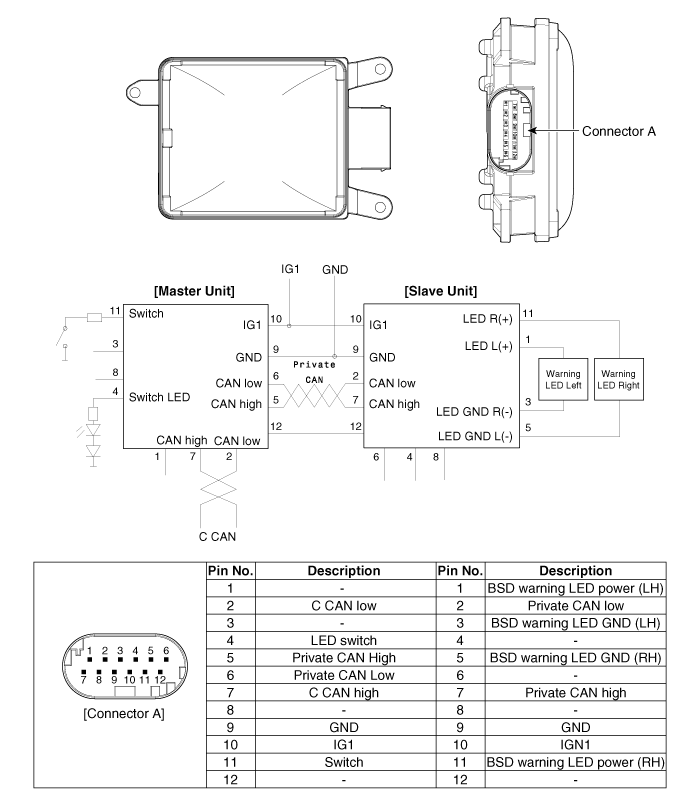

Kia Sorento: Blind Spot Detection Unit Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Blind Spot Detection System / Blind Spot Detection Unit Circuit Diagram
1.
BSD system defects can be quickly diagnosed with the GDS. GDS
operates actuator quickly to monitor, input/output value and self diagnosis.
2.
Conne...
Diagnosis With GDS
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear bumper.
(Refer to Body - "Rear Bumper")
3.
...
Blind Spot Detection Unit Removal
See also:
Hazard Lamp Switch Installation
1.
Install the heater control unit to the center fascia panel.
2.
Install the center fascia panel.
...
Output Speed Sensor Removal
1.
Remove the valve body assembly.
(Refer to Hydraulic System - "Valve Body")
2.
Disconnect the input & output speed senso ...
Components
1. Blind Spot Detection (BSD) Unit
2. BSD switch
3. Speaker (Built in the cluster)
4. BSD warning lamp (Built in the outside mirror)
...
