Kia Sorento: Diagnosis With GDS
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Blind Spot Detection System / Diagnosis With GDS
| 1. |
BSD system defects can be quickly diagnosed with the GDS. GDS
operates actuator quickly to monitor, input/output value and self diagnosis.
|
| 2. |
Connect the cable of GDS to the data link connector in driver
side crash pad lower panel, turn the power on GDS.
|
| 3. |
Select the vehicle model and then BSD system.
|
| 4. |

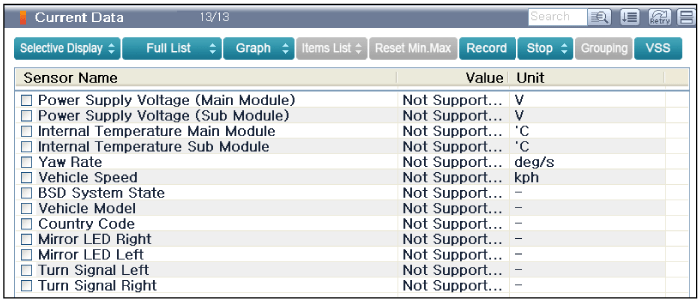

Select "Input/output monitoring", if you want to check current
data of BSD system.
|
| 5. |

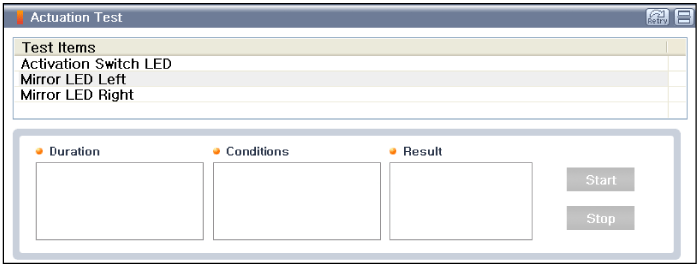

If you want to check each module operation forcefully, select
"Actuation test".
|
