Kia Sorento: Brake Pedal Components - Brake System - Brake SystemKia Sorento: Brake Pedal Components

Kia Sorento (XM, 2011-2015) Service Manual / Brake System / Brake System / Brake Pedal Components

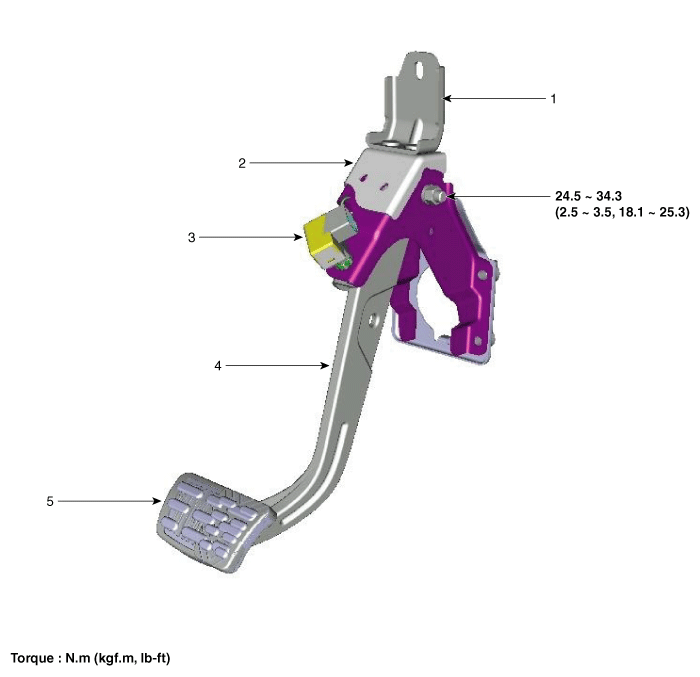

1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Brake pedal arm
5. Brake pedal pad

Brake Line Installation
1. Installation is the reverse of removal.    Use a new washer (A) whenever installing....
Brake Pedal Removal
1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel and reinforce panel. (Refer to ...
