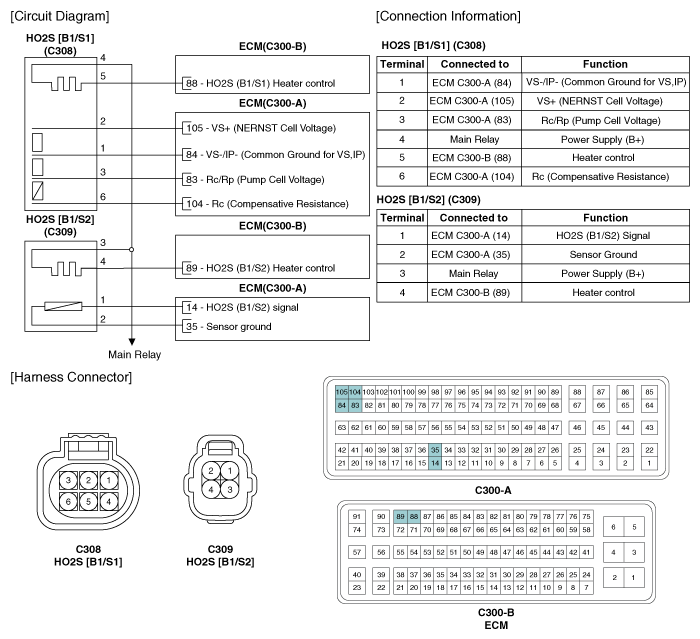

Kia Sorento: Circuit Diagram
Specification
HO2S [Bank 1/Sensor 1]
Item
Specification
Heater Resistance (Ω)
2.5 ~ 4.0 [20°C(68°F)]
HO2S [Bank 1/Sensor 2]
A/F Ratio (λ)
...
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the HO2S connector.
3.
Measure resistance between the HO2S terminals 4 and ...
