Kia Sorento (XM, 2011-2015) Service Manual / Engine Electrical System / Charging System / Battery Components

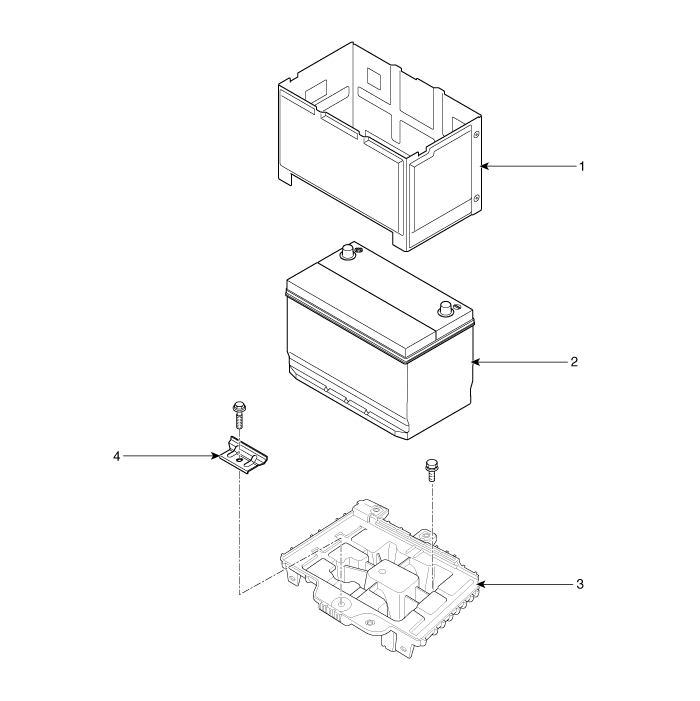

1. Battery insulation pad
2. Battery

3. Battery tray
4. Battery mounting bracket

Battery Specification
Item Specification Model type CMF68L-BCI Capacity [20HR/5HR] (AH) 68 / 54 Cold Cranking Amperage (A) 600 (SAE) / 480 (EN) ...
Battery Removal
1. Disconnect the battery (-) terminal and (+) terminal (A). 2. Remove the battery mounting bracket (B) and the insulation pad and then remove the bat...
