Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Description

Burglar Alarm State [B/A State]
B/A State
Description
DISARM
1.
In "DISARM" state, no vehicle start inhibition. So, when door, hood, or Tailgate is opened, there is no alarm sound and flashing.
2.
If the battery is disconnected while the state is not "ARM/ARMWAIT/ALARM/REARM", B/A state is set to "DISARM" state.

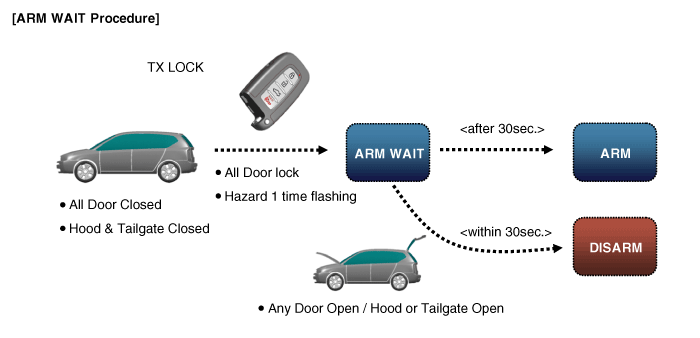

ARMWAIT
1.
In "ARMWAIT" state, when timer
