Kia Sorento: Components Location
Kia Sorento (XM, 2011-2015) Service Manual / Emission Control System / Evaporative Emission Control System / Components Location

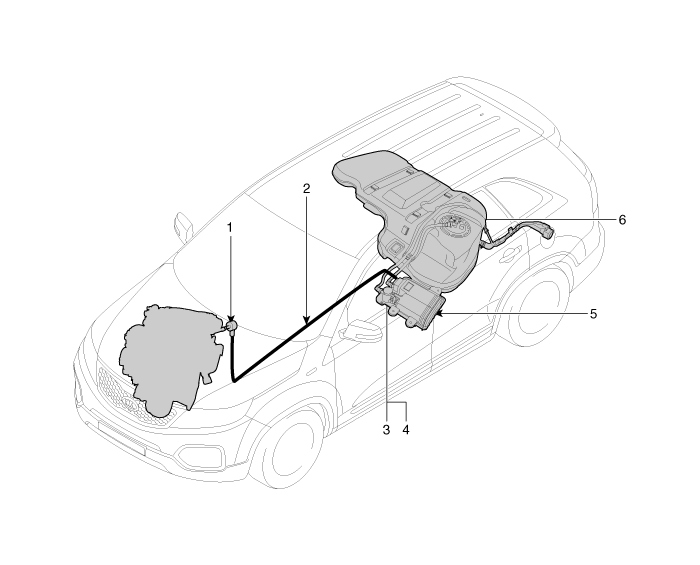

| 1. Purge Control Solenoid Valve (PCSV) 2. Vapor line 3. Fuel tank air filter |
4. Canister Close Valve (CCV) 5. Canister 6. Fuel Tank Pressure Sensor (FTPS) |
Canister
Canister is filled with charcoal and absorbs evaporated vapor in fuel
tank. The gathered fuel vapor in canister is drawn into the intake manifold
by the ECM/PCM when appropriate con...
Schematic Diagram
[Evap Leak Test]
Engine Control Module (ECM) controls Purge Control Solenoid Valve (PCSV)
and Canister Close Valve (CCV) for EVAP System diagnosis if the conditions are
satisfied.
...
Inspection
