Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Indicators And Gauges / Component Location

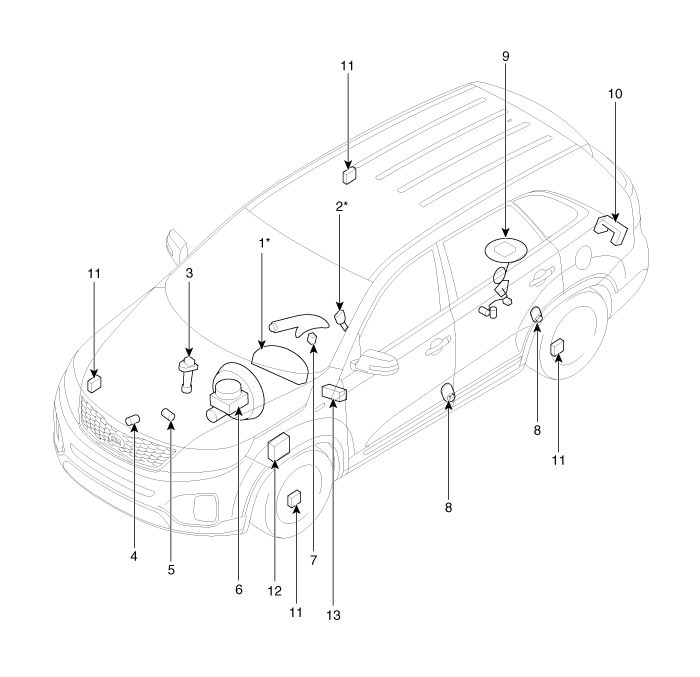

| 1. Cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sender 5. Oil pressure switch 6. Brake fluid level warning switch 7. Parking brake switch |
8. Door switch 9. Fuel gauge sender 10. Tailgate switch 11. Wheel speed sensor 12. ABS ECU 13. Active ECO switch |
Indicators And Gauges
Connector Pin Information
Pin No.
Description
Pin No.
Description
1
Airbag supply
21
Battery
2
P (AT)
22
...
