Kia Sorento: Instrument Cluster Components - Indicators And Gauges - Body Electrical SystemKia Sorento: Instrument Cluster Components

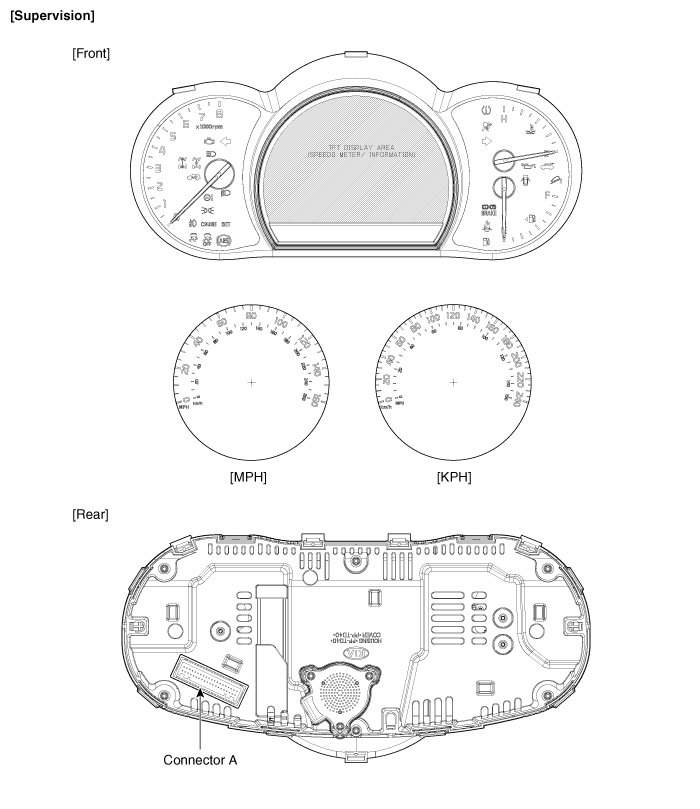

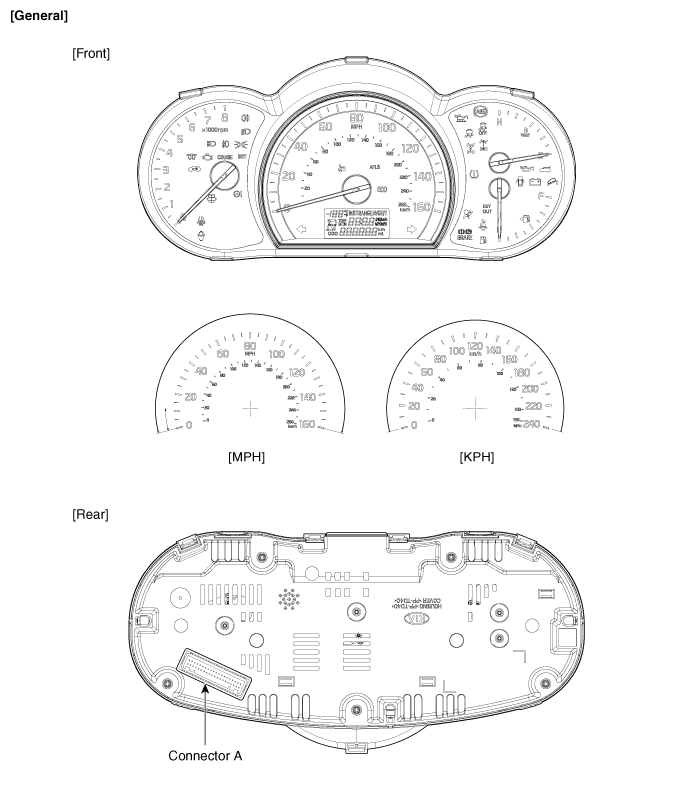

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Components

Connector Pin Information
Pin No.
 Description
 Pin No.
 Description
1
 Airbag supply
 21
 Battery
2
 P (AT)
 22
 IGN 1
3
 R (AT)
 23
 Illumination (+)
4
 N (AT)
 24
 Trip/Reset switch (Trip (+))
5
 D (AT)
 25
 Switch GND (Trip (-))
6
 Detent output
 26
 Signal GND
7
 Fuel input
 27
 Fuel low
8
 -
 28
 Fuel warning
9
 Water separator sensor input
 29
 -
10
 -
 30
 -
11
 Washer input
 31
 4P output
12
 Rheostat up
 32
 -
13
 Rheostat down
 33
 C CAN high
14
 Steering heat
 34
 C CAN low
15
 Cruise (+) switch
 35
 -
16
 Active ECO
 36
 M CAN high (Supervision)
17
 Oil pressure
 37
 M CAN low (Supervision)
18
 Alternator
 38
 -
19
 Oil level
 39
 Rheostat output
20
 Immobilizer
 40
 Rheostat ground

Component Location
1. Cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sender 5. Oil pressure switch 6. Brake fluid level warning switch 7. Parking brake switc...
Instrument Cluster Circuit Diagram
...
