Kia Sorento: Component Location - Lighting System - Body Electrical SystemKia Sorento: Component Location

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Lighting System / Component Location

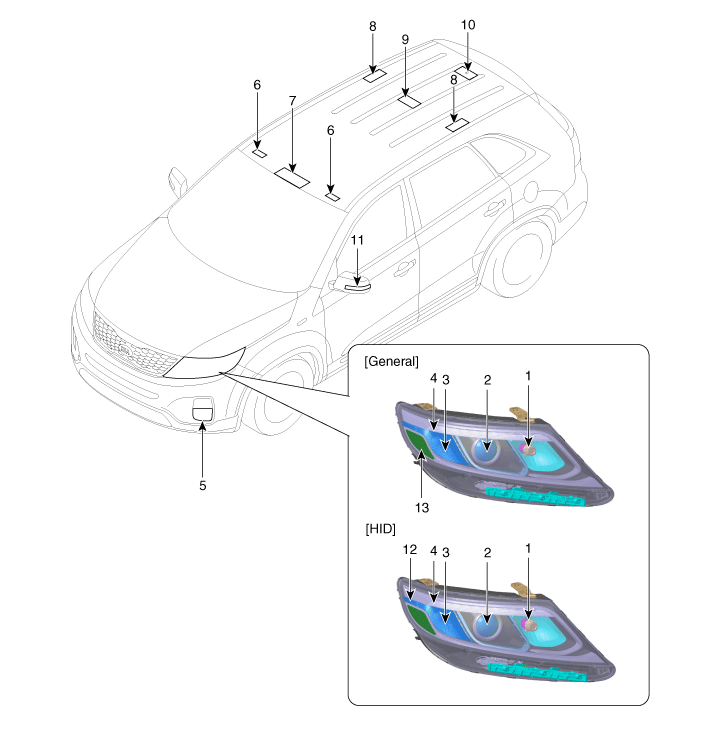

1. Head lamp (High)
2. Head lamp (Low)
3. Front turn signal lamp
4. Position lamp/ DRL
 5. Front fog lamp
6. Vanity lamp
7. Overhead console lamp
8. Room lamp (Sunroof)
 9. Room lamp
10. Cargo lamp
11. Side repeater (Outside mirror)
12. Side marker

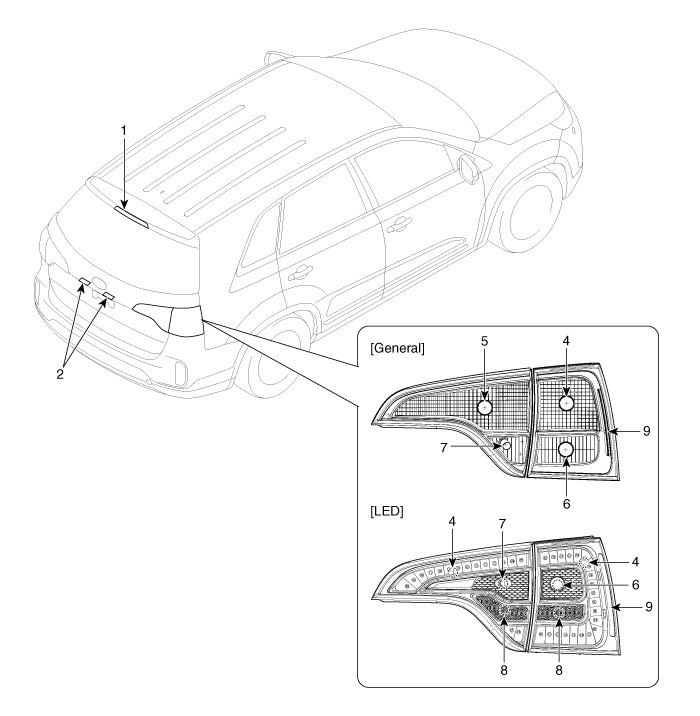

1. High mounting stop lamp
2. License plate lamp
3. Tail/ stop lamp
4. Tail lamp
 5. Rear turn signal lamp
6. Back up lamp
7. Stop lamp
8. Side marker

Specifications
Items Wattage (W) Type Front Standard Head lamp (Low) 55 H7LL HID 35 D3S Head lamp (High) 55 ...
Head Lamps Component (1)
1. Head lamp assembly 2. Head lamp high beam bulb 3. Head lamp low beam bulb 4. Dust cap 5. Turn signal lamp socket & bulb...
