Kia Sorento: Components - Cylinder Head Assembly - Engine Mechanical SystemKia Sorento: Components

Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cylinder Head Assembly / Components

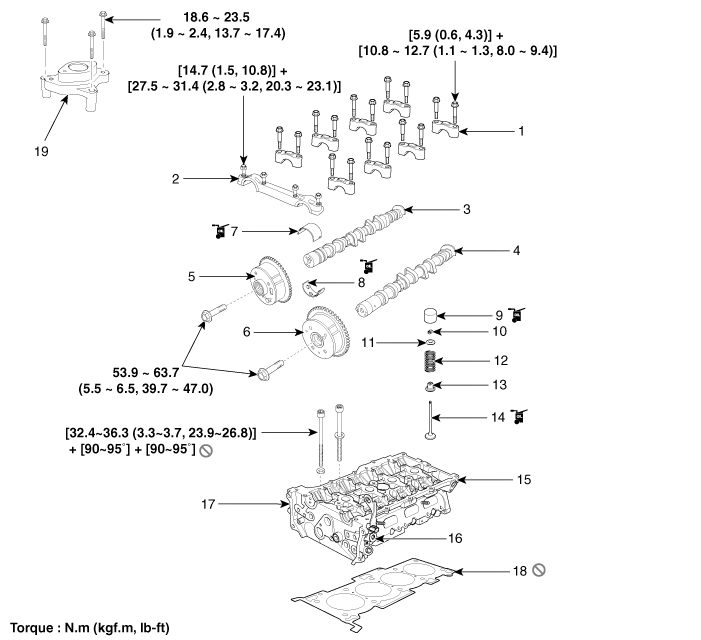

1. Camshaft bearing cap
2. Camshaft front bearing cap
3. Exhaust camshaft
4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly
 7. Exhaust camshaft upper bearing
8. Exhaust camshaft lower bearing
9. MLA
10. Retainer lock
11. Retainer
12. Valve spring
 13. Valve stem seal
14. Valve
15. Cylinder head
16. Intake OCV (Oil control valve)
17. Exhaust OCV (Oil control valve)
18. Cylinder head gasket
19. Fuel pump bracket

Cylinder Head Assembly
...
Valve Clearance Inspection And Adjustment
   Inspect and adjust the valve clearance when the engine is cold (Engine coolant temperature : 20°C (68°F)) and cylinder head is installed on t...
