Kia Sorento: Components - Cylinder Block - Engine Mechanical SystemKia Sorento: Components

Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cylinder Block / Components

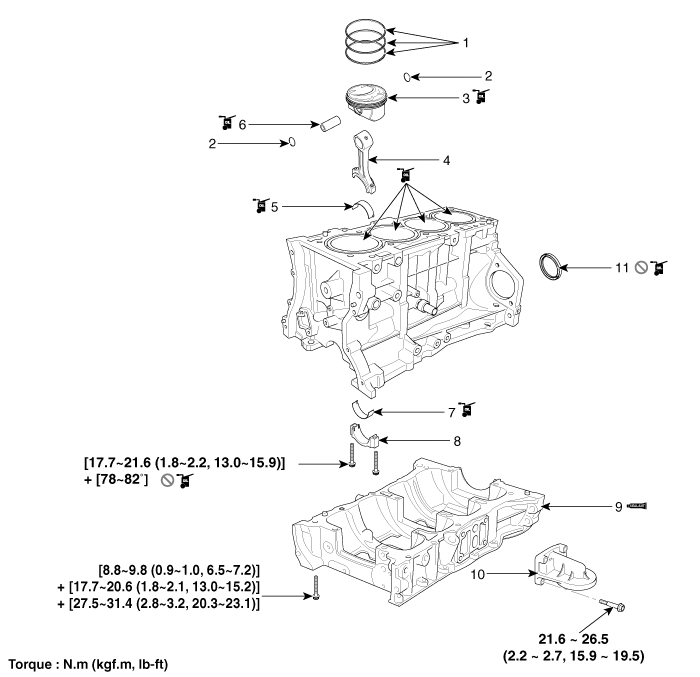

1. Piston ring
2. Snap ring
3. Piston
4. Connecting rod
5. Connecting rod upper bearing
6. Piston pin
7. Connecting rod lower bearing
8. Connecting rod bearing cap
9. Ladder frame
10. Oil filter bracket
11. Crankshaft rear oil seal

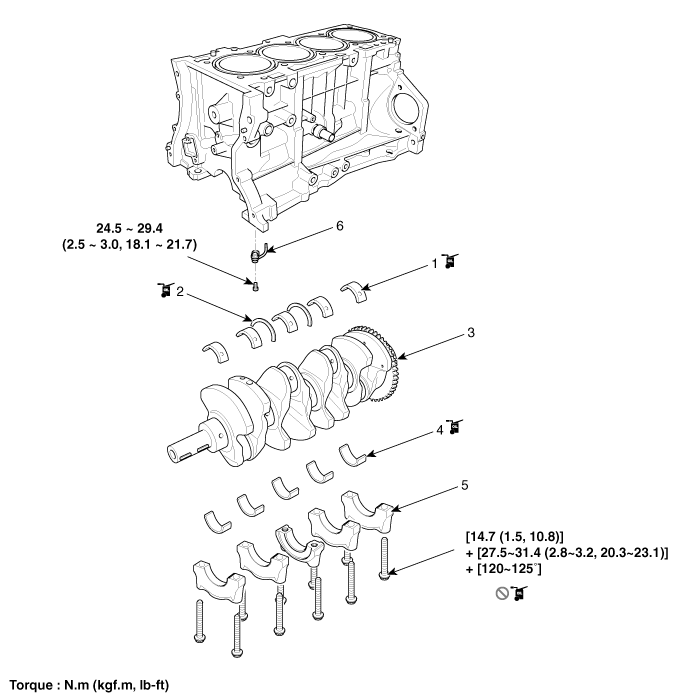

1. Crankshaft upper bearing
2. Thrust bearing
3. Crankshaft
4. Crankshaft lower bearing
5. Main bearing cap
6. Piston cooling oil jet

Cylinder Block
...
Drive Plate Removal and Installation
1. Remove the automatic transaxle . (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the drive plate (A) and the ...
