Kia Sorento: Compressor Inspection
| 1. |
Check the plated parts of the disc & hub assembly (A) for color
changes, peeling or other damage. If there is damage, replace the clutch
set.
|
| 2. |
Check the pulley (B) bearing play and drag by rotating the pulley
by hand. Replace the clutch set with a new one if it is noisy or has
excessive play/drag.
|
| External Control Valve Compressor Inspection (GDS) |
| 1. |

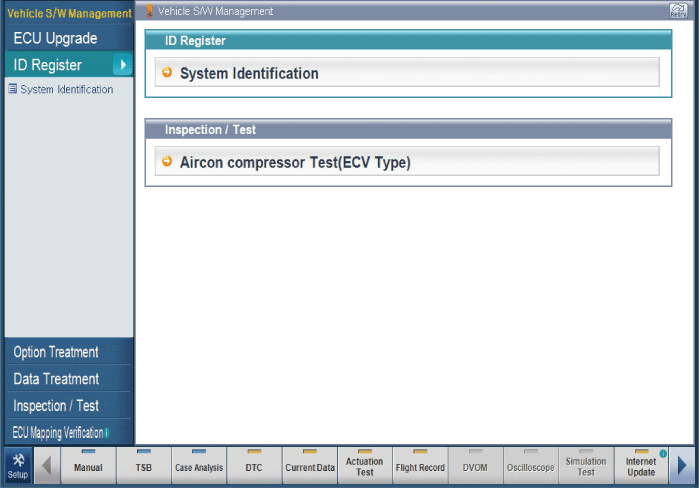

Connect GDS to the vehicle and select 'Aircon Compressor Test(ECV
type)'
[ECV1]
|
| 2. |

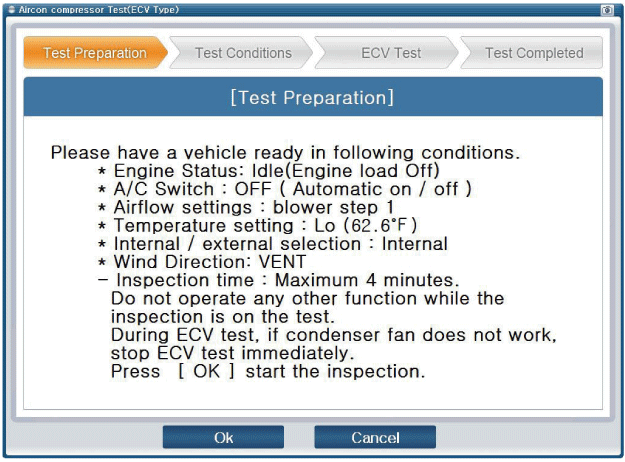

Make the vehicle ready as the GDS instruction on the monitor.
(Turn off A/C 'switch' only)
[ECV2]
[ECV3]
|
| 3. |

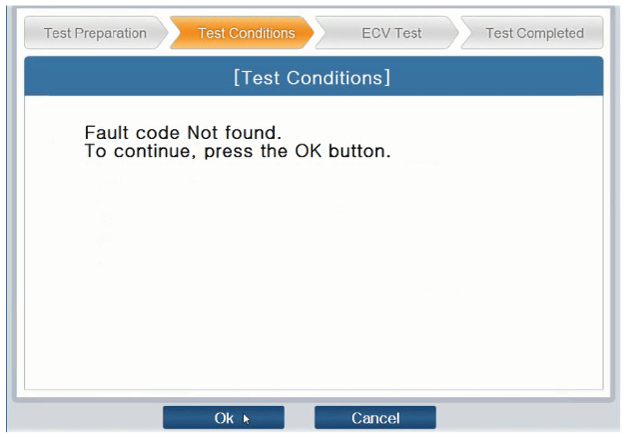

Check if other DTC codes are found before inspect ECV compressor.
If so, solve that problems first. If not, press 'OK' button to continue.
[ECV4]
|
| 4. |

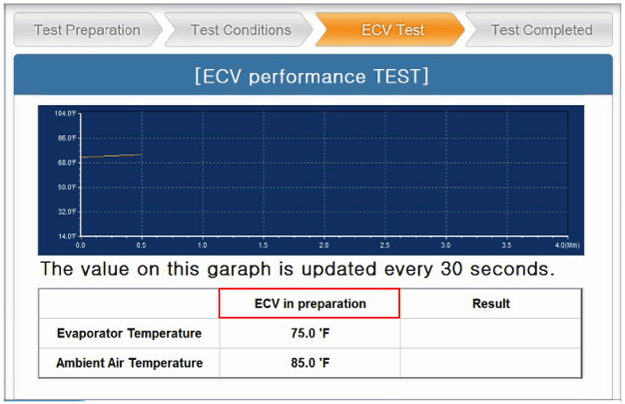

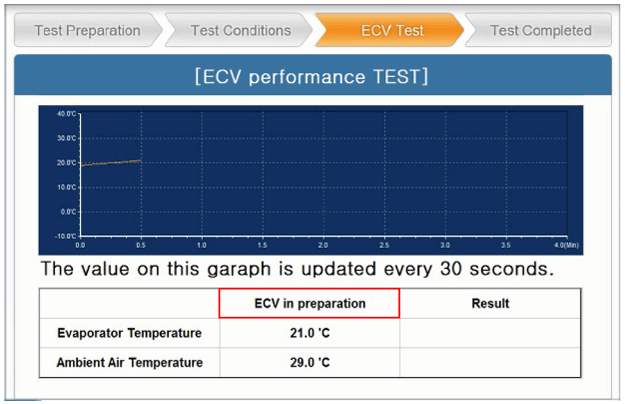

Start inspection
[ECV5]
[ECV6]
|
| 5. |

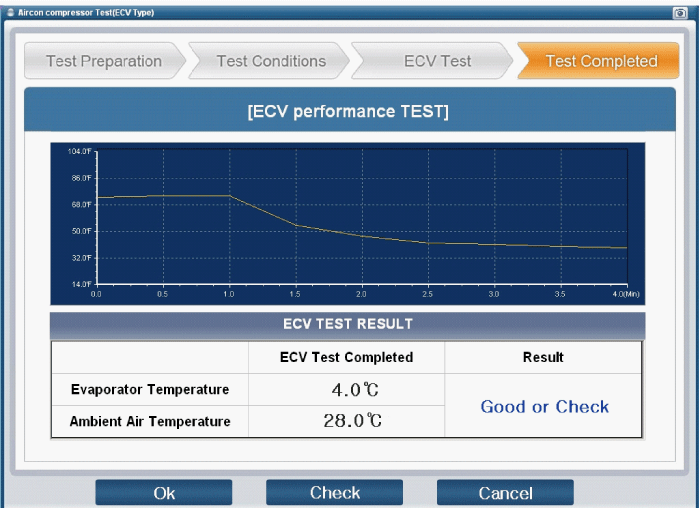

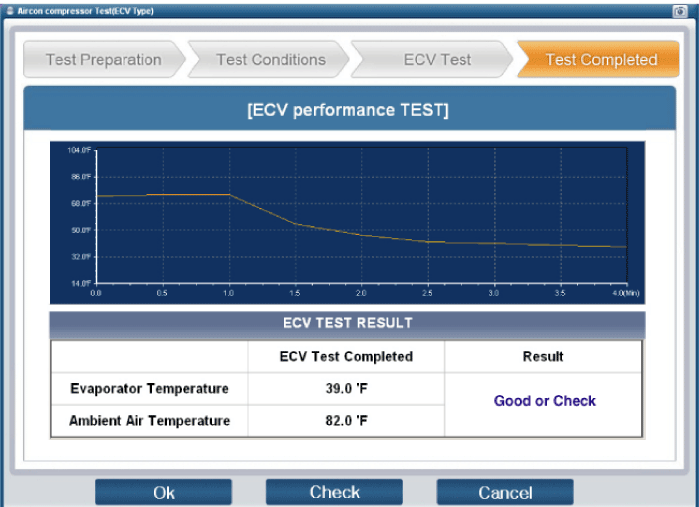

Check the result of inspection.
[ECV7]
[ECV8]
|
| 6. |

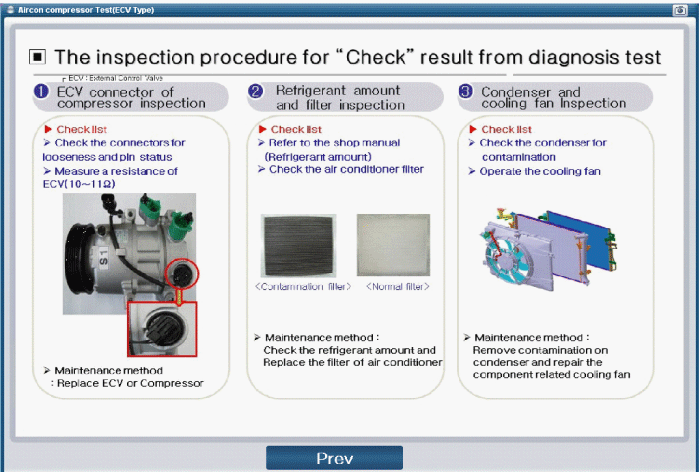

If the result shows "Check" , click "Check" and follow the instruction.
|
| 7. |
Inspect ECV again from the first step.
|
