Kia Sorento: Component Location

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Audio / Component Location

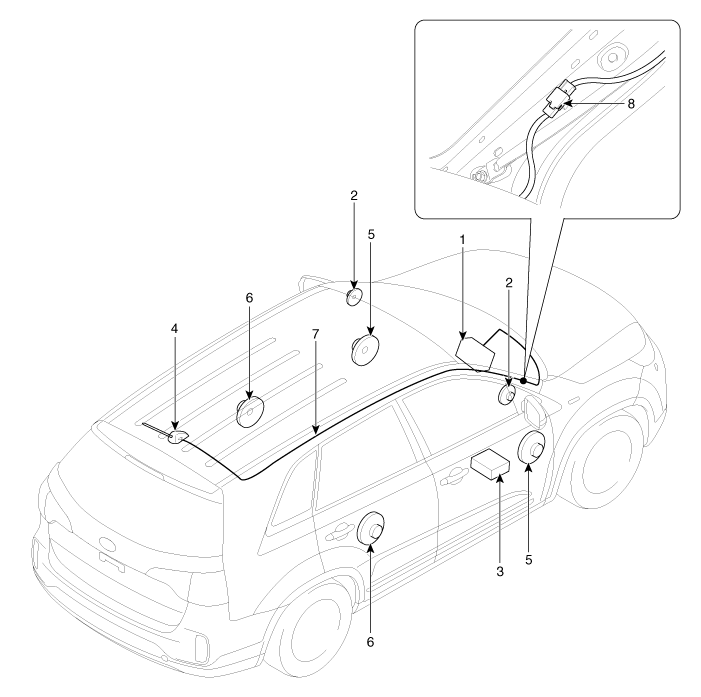

1. Audio unit
2. Tweeter speaker
3. External amplifier
4. Roof antenna (Radio + Siruis)

5. Front door speaker
6. Rear door speaker
7. Antenna feeder cable
8. Antenna cable connector

Specifications

Audio Item Specification Model RADIO/CD/MP3/SDARS (PA30A) RADIO/VCD/MP3/SDARS (BA900) HD RADIO/VCD/MP3/SDARS (BA950) Power supply ...

Audio Unit Components

Connector Pin Information No Connector A Connector B 1 Rear left speaker (+) CAN high 2 Front left speaker (+) - ...
