Kia Sorento: Cooling Fan Circuit Diagram - Cooling System - Engine Mechanical SystemKia Sorento: Cooling Fan Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Circuit Diagram

Cooling Fan Specification
[Cooling fan control module] Items Specification Input Signal Frequency ( Hz) 300...

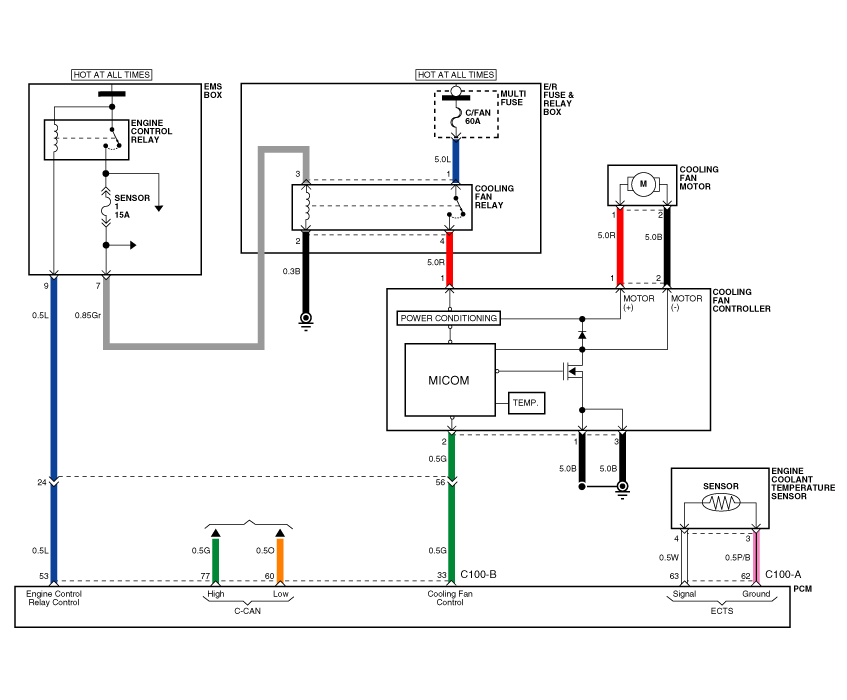

Cooling Fan Control Module Circuit Diagram
...
