Kia Sorento: Cooling Fan Control Module Circuit Diagram - Cooling System - Engine Mechanical SystemKia Sorento: Cooling Fan Control Module Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Control Module Circuit Diagram

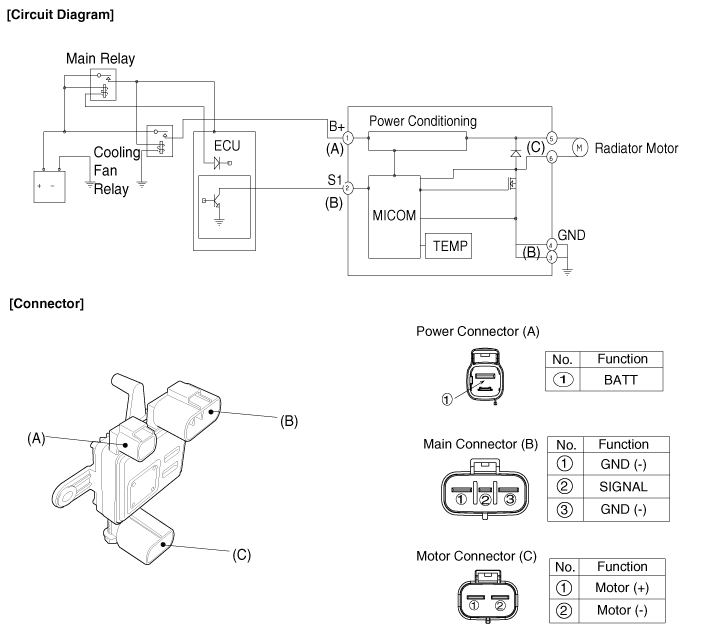

Cooling Fan Circuit Diagram
...
Cooling Fan Removal and Installation
Cooling Fan Assembly 1. Disconnect the battery terminals. 2. Remove the air cleaner assembly. (Refer to Intake And Exhaust System...
