Kia Sorento: Cooling Fan Components
Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Components

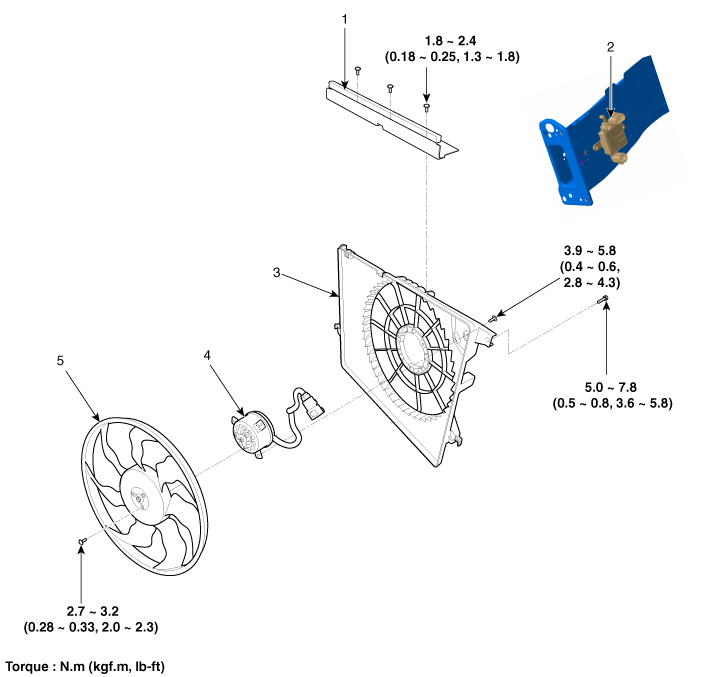

| 1. Upper air guard 2. Cooling fan control module 3. Cooling fan shroud |
4. Fan motor 5. Cooling fan |
Radiator Inspection
Radiator Cap Testing
1.
Remove the radiator cap, wet its seal with engine coolant, and then
install it on a pressure tester.
2.
Ap...
Cooling Fan Description
Control the cooling motor voltage in according to the duty(300Hz) of ECM.
[ECU → PWM Input Signal(SI : 300Hz)]
Signal Input Duty (%)
Motor Voltage (V)
10
...
