Kia Sorento: Crankshaft Components - Cylinder Block - Engine Mechanical SystemKia Sorento: Crankshaft Components

Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cylinder Block / Crankshaft Components

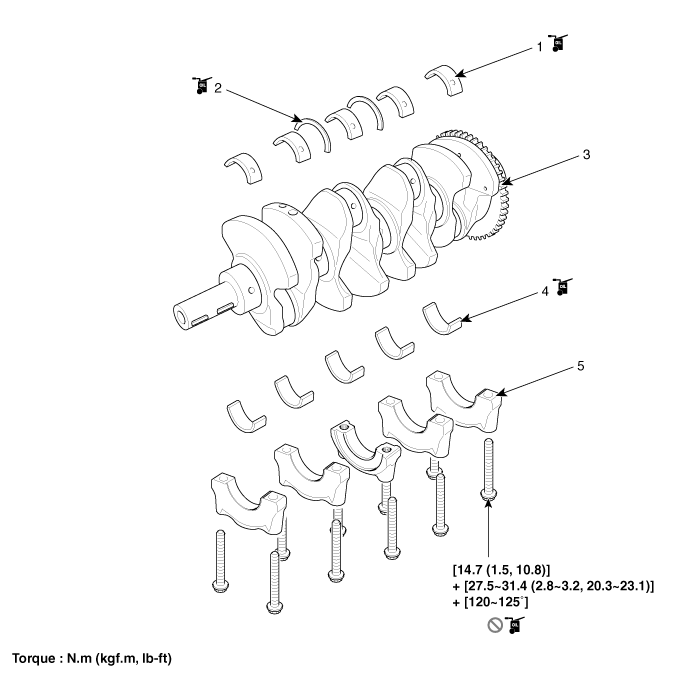

1. Crankshaft upper bearing
2. Thrust bearing
3. Crankshaft
4. Crankshaft lower bearing
5. Main bearing cap
