Kia Sorento: CVVT & Camshaft Components
Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cylinder Head Assembly / CVVT & Camshaft Components

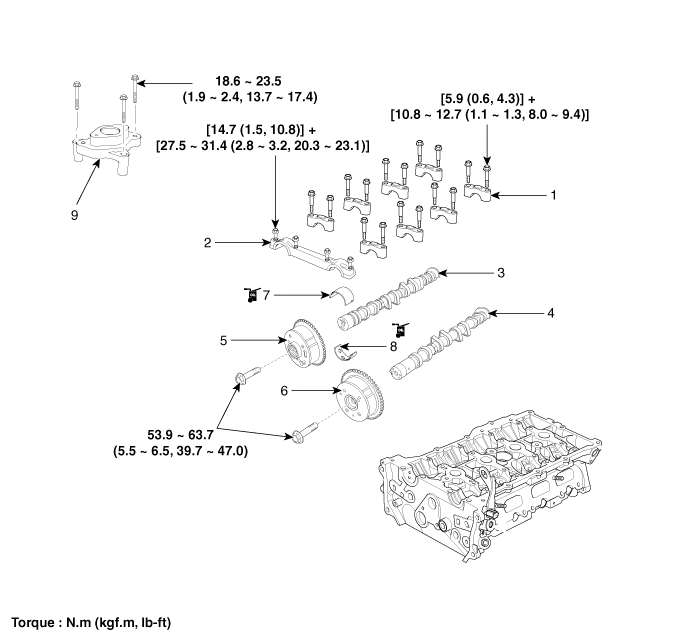

| 1. Camshaft bearing cap 2. Camshaft front bearing cap 3. Exhaust camshaft 4. Intake camshaft 5. Exhaust CVVT assembly |
6. Intake CVVT assembly 7. Exhaust camshaft upper bearing 8. Intake camshaft lower bearing 9. Fuel pump bracket |
