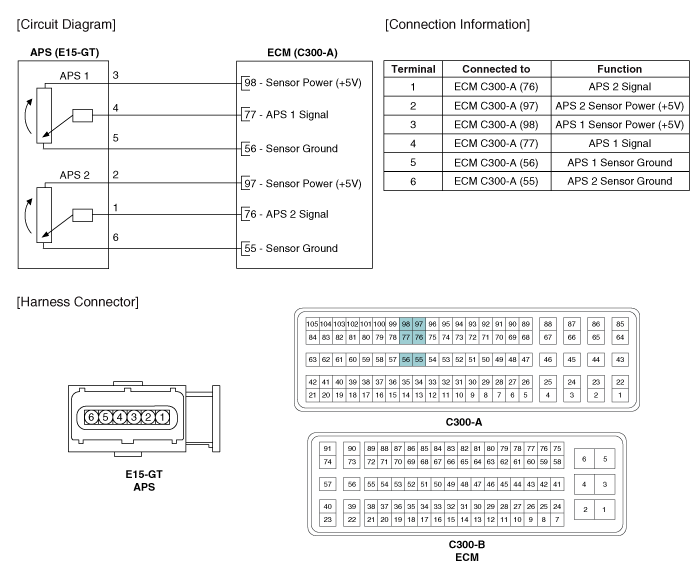

Kia Sorento: Circuit Diagram
Accelerator
Position
Output Voltage (V)
APS1
APS2
C.T
0.7 ~ 0.8
0.275 ~ 0.475
W.O.T
3.8 ~ 4.4
1.75 ~ 2.35...
Specification
1.
Connect the GDS on the Data Link Connector (DLC).
2.
Turn the ignition switch ON.
3.
Measure the output voltage of the ...
Inspection
See also:
Relay Box (Passenger Compartment) Inspection
Fuse
1.
Be sure there is no play in the fuse holders, and that the fuses
are held securely.
2.
Are the fuse capacities for each circuit ...
Hands Free Mic Inspection
1.
Disconnect the negative(-) battery terminal.
2.
Remove the hands free mic (A) after disengaging the hook from
roof top.
...
Front Fog Lamps Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front tire wheel guard.
(Refer to Body - "Front bumper")
...
