Kia Sorento: Cylinder Head Components
Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Components

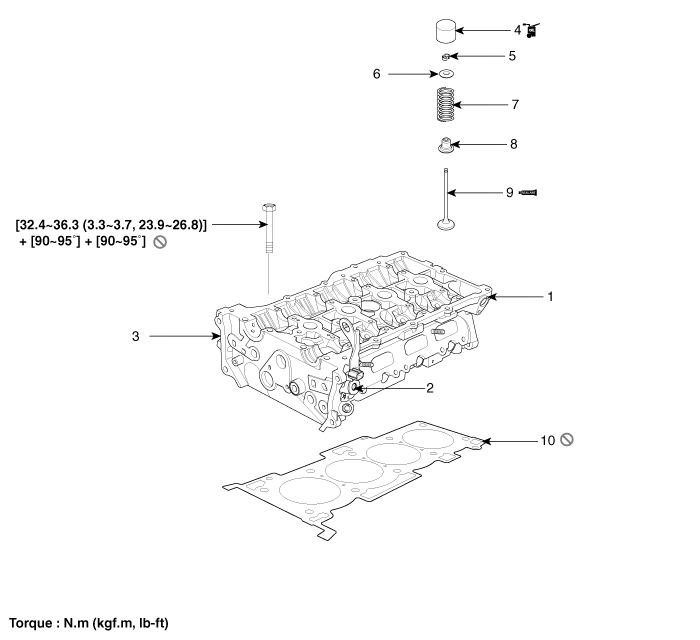

| 1. Cylinder head 2. Intake OCV (Oil Control Valve) 3. Exhaust OCV (Oil Control Valve) 4. MLA 5. Retainer lock |
6. Retainer 7. Valve spring 8. Valve stem seal 9. Valve |
CVVT & Camshaft Installation
1.
Install the intakeCVVT assembly(A), exhaust CVVT assembly(B) and camshaft(C).
Tightening torque :
53.9 ~ 63.7 N.m (5.5 ~ 6.5 kgf.m, 39.7 ~ 47.0 l...
Cylinder Head Removal
•
Use fender covers to avoid damaging painted surfaces.
•
To avoid damaging...
