Kia Sorento (XM, 2011-2015) Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Direct Electro Hydraulic Actuator Coupling Component Location

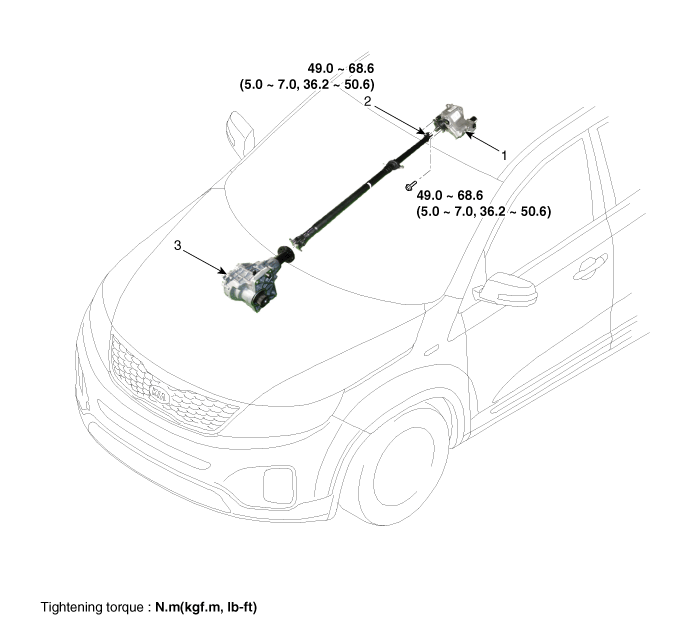

| 1. Coupling assembly 2. Propeller shaft |
3. Transfer assembly |
Coupling Assembly
1. Coupling assembly
2. Input shaft
3. Pressure sensor
4. Extension wiring
5. Oil hydraulic Motor(Actuator)...
Direct Electro Hydraulic Actuator Coupling Components
