Kia Sorento: Fluid Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Hydraulic System / Fluid Component Location

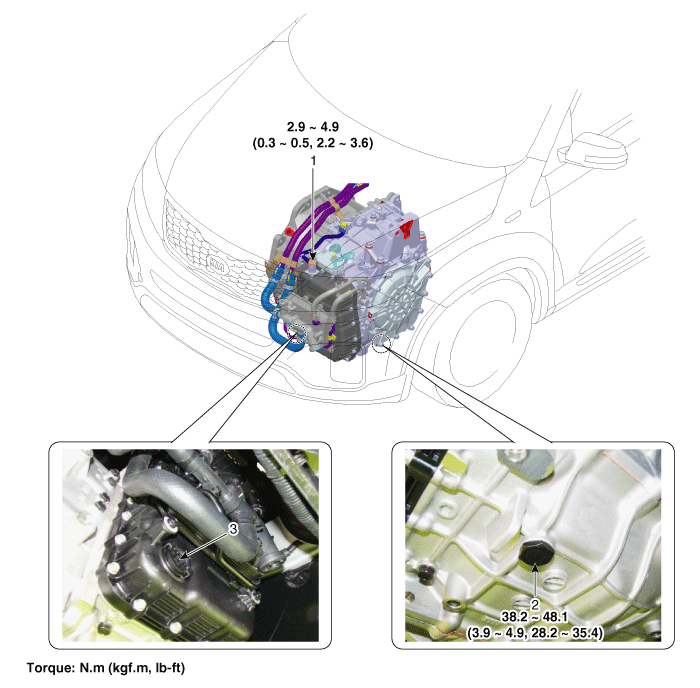

| 1. ATF Injection hole(eyebolt) 2. Oil level plug 3. Oil drain plug |
Oil Pump Component
1. Reaction shaft support assembly
2. Oil pump housing
3. Driven gear
4. Drive gear
5. Oil seal
6. Bush-Housing
7. Reaction shaft
8. Bush- Reaction shaft
9. Sleeve
10. F...
Fluid Service Adjustment Procedure
Oil level Check
A check of ATF level is not normally required during scheduled
services. If an oil leak is found,...
