Kia Sorento: Front Body A - Body Dimensions - Body (Interior and Exterior)Kia Sorento: Front Body A

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Body Dimensions / Front Body A

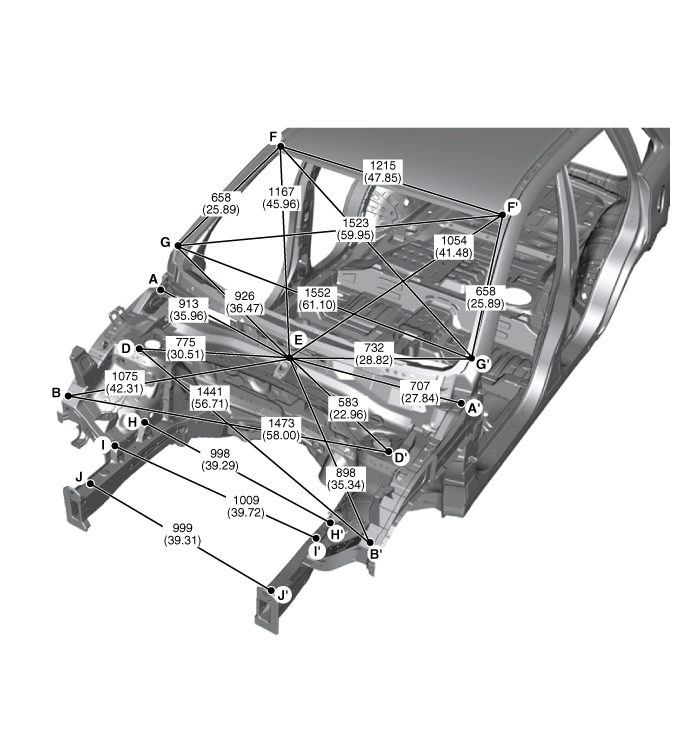

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Measurement Method
Projected Dimensions 1. These are the dimensions measured when the measurement points are projected into the reference plane, and are the reference dimensions us...
Front Body B
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]...
