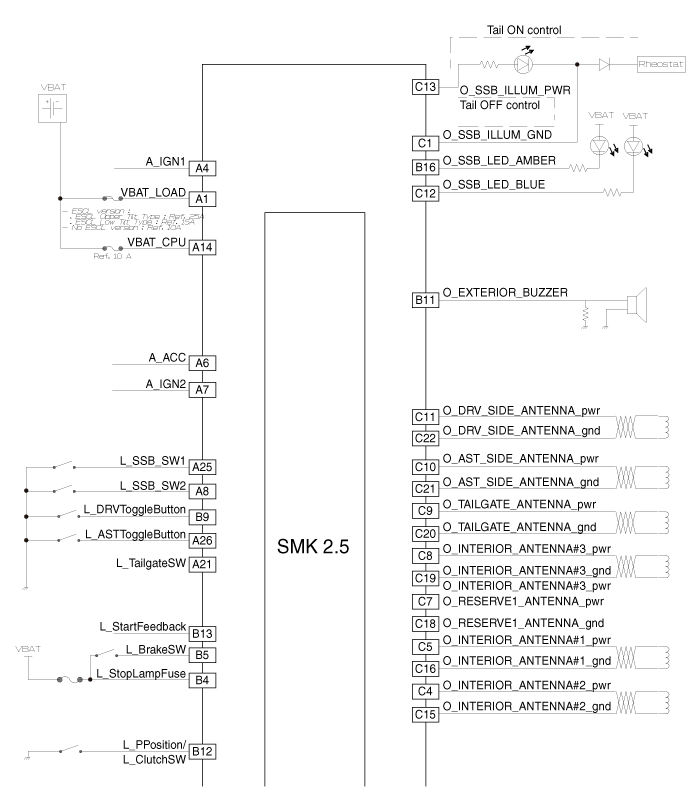

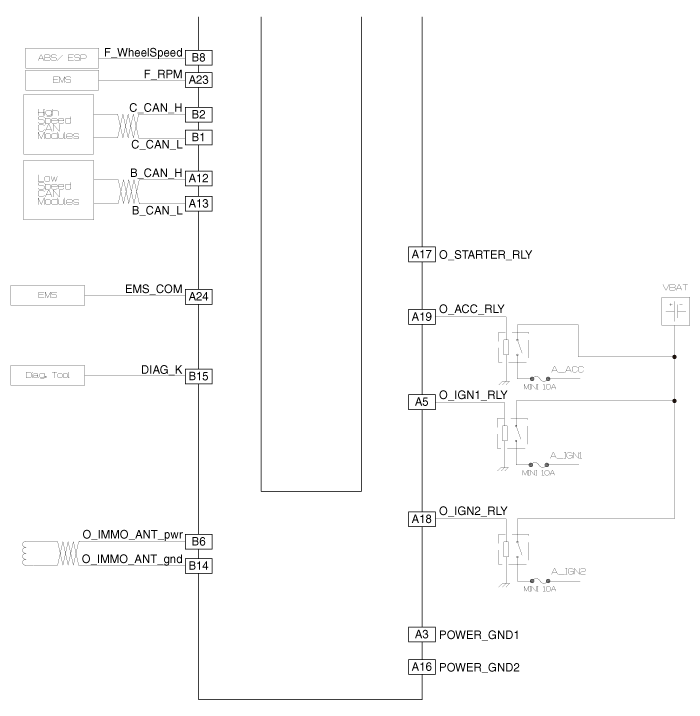

Kia Sorento: Smart key unit Circuit Diagtam - Smart key System - Body Electrical SystemKia Sorento: Smart key unit Circuit Diagtam

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Smart key System / Smart key unit Circuit Diagtam

Smart key unit Components
Connector Pin Information No. Connector A Connector B Connector C 1 V_BAT load C_CAN Low SSB illumination ground 2 - ...
Smart key unit Removal
Smart Key Unit 1. Disconnect the negative (-) battery terminal. 2. Remove the glove box housing (A). (Refer to Body - "Crash pad&q...
