Kia Sorento: Front Door Components - Exterior - Body (Interior and Exterior)Kia Sorento: Front Door Components

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Front Door Components

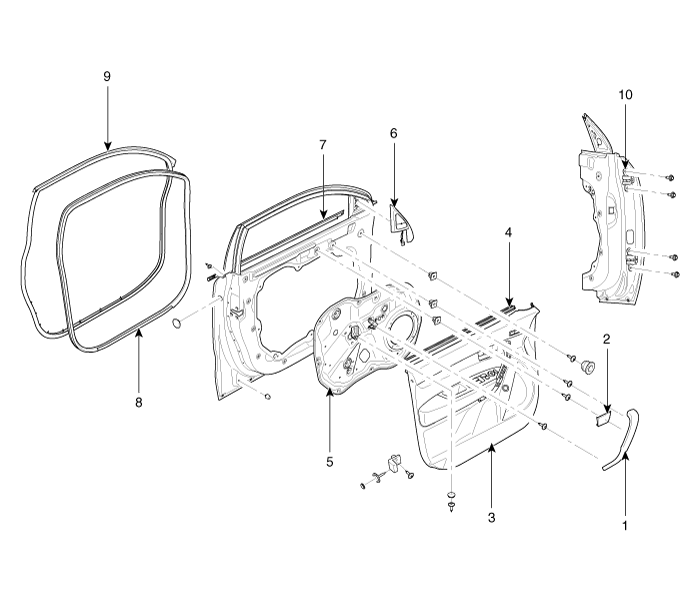

1. Door grip handle cover
2. Door inside handle cap
3. Door trim
4. Door belt inner weatherstrip
5. Door module
6. Quadrant inner cover
7. Door belt weatherstrip
8. Door side body weatherstrip
9. Door side weatherstrip
10. Door hinge

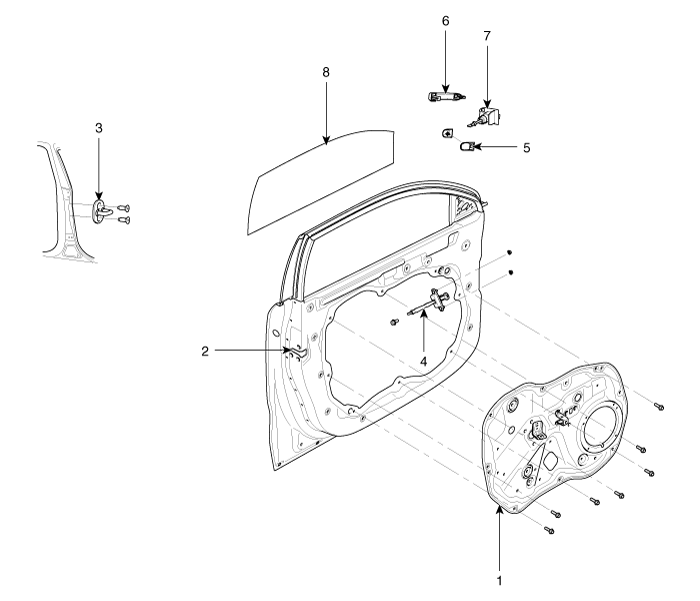

1. Door module
2. Door latch
3. Door striker
4. Door checker
5. Outside handle pad
6. Outside
7. Outside handle cover
8. Door glass
