Kia Sorento: Front Driveshaft Components - Driveshaft Assembly - Driveshaft and axleKia Sorento: Front Driveshaft Components

Kia Sorento (XM, 2011-2015) Service Manual / Driveshaft and axle / Driveshaft Assembly / Front Driveshaft Components

1. Front driveshaft (LH)
2. Inner shaft bearing bracket
 3. Front driveshaft (RH)

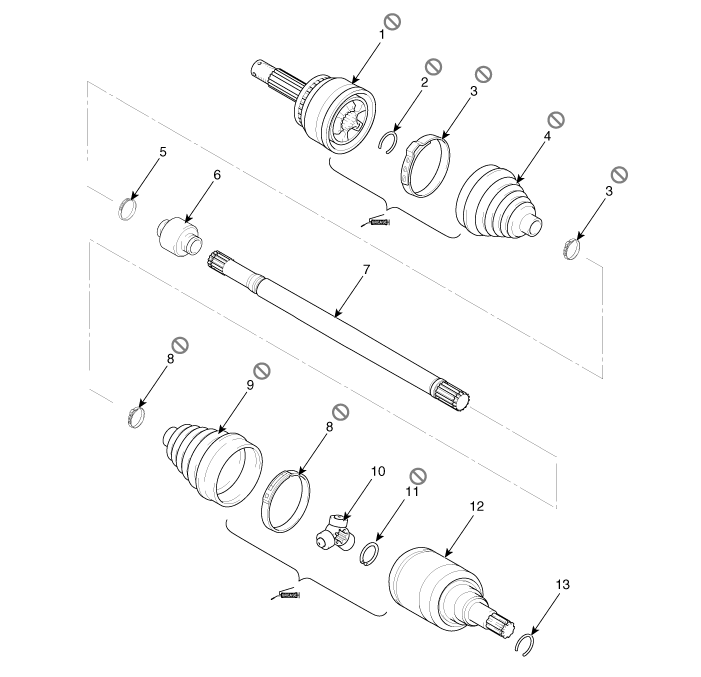

[LH]

1. BJ assembly
2. Clip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
 8. TJ boot band
9. TJ boot
10. Spider assembly
11. Circlip
12. TJ housing
13. Circlip

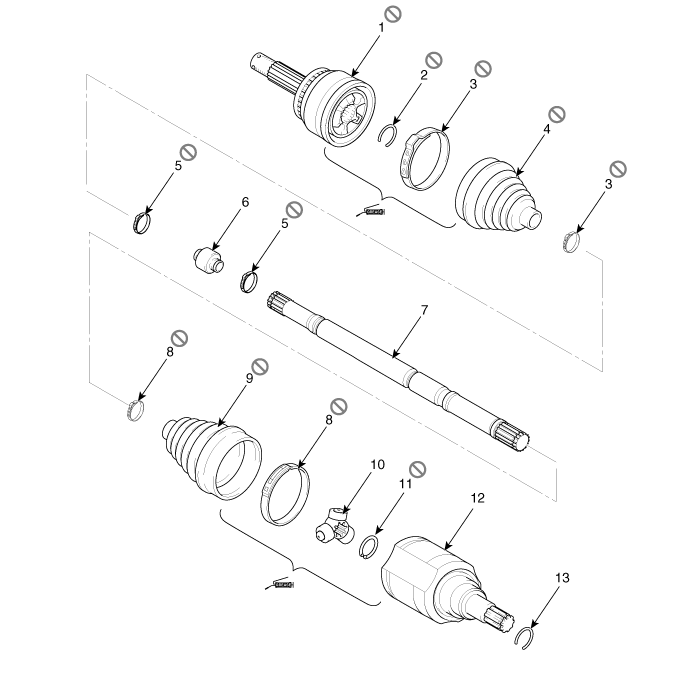

[RH]

1. BJ assembly
2. Clip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
 8. TJ boot band
9. TJ boot
10. Spider assembly
11. Circlip
12. TJ housing
13. Circlip

Driveshaft Assembly
...
Front Driveshaft Removal and Installation
1. Remove the front wheel and tire (A) from front hub . Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...
