Kia Sorento: Front Wheel Speed Sensor Components
Kia Sorento (XM, 2011-2015) Service Manual / Brake System / ESC(Electronic Stability Control) System / Front Wheel Speed Sensor Components

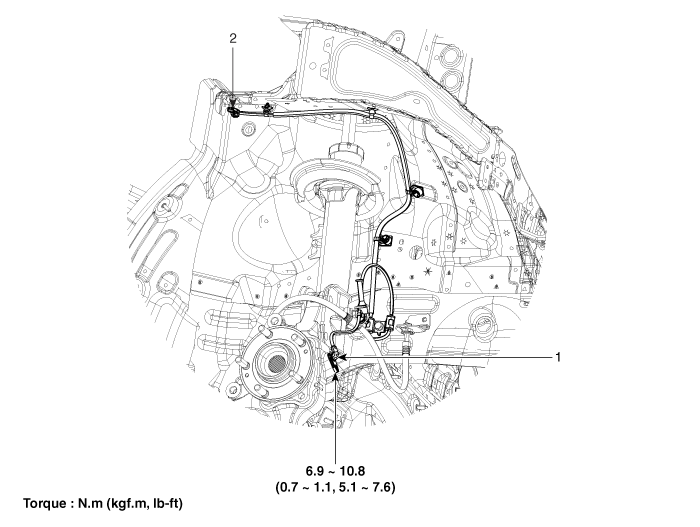

| 1. Front wheel speed sensor 2. Front wheel speed sensor connector |
