Kia Sorento: Front Wiper Motor Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor Component Location

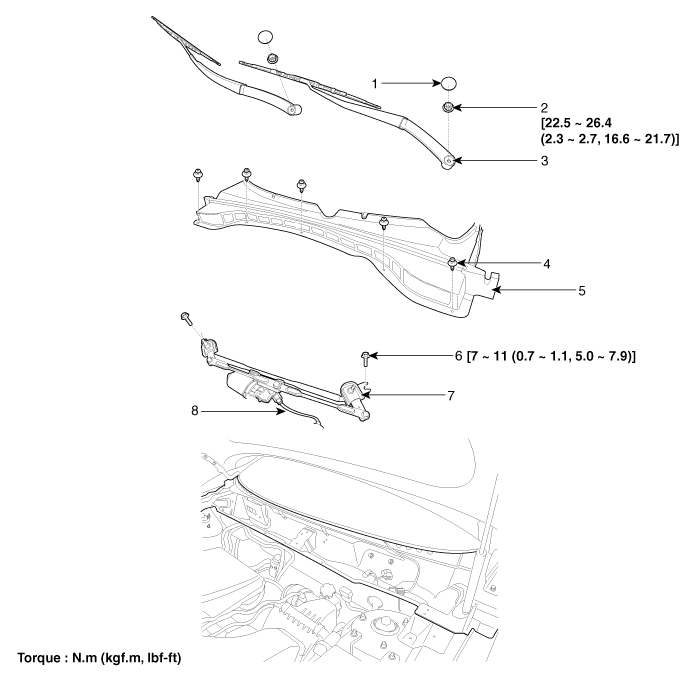

| 1. Cap 2. Nut 3. Wiper arm & blade 4. Retainer |
5. Cowl top cover 6. Bolt 7. Wiper motor & linkage assembly 8. Wiper motor connector |
Check for continuity between the terminals while operating the wiper and
washer switch. If it is not normal condition, replace wiper and wiper switch.
Wiper Switch
Washer Switch
Rear...
Windshield Wiper-Washer Switch Inspection
1.
Remove the windshield wiper arm and blade after removing a nut
(B) and wiper cap (A).
2.
Remove the windshield wiper arm and blade (A) afte...
Front Wiper Motor Removal
