Kia Sorento: Front Wiper Motor Removal
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor Removal
| 1. |
Remove the windshield wiper arm and blade after removing a nut
(B) and wiper cap (A).
|
| 2. |
Remove the windshield wiper arm and blade (A) after removing a
nut.
|
| 3. |
If necessary, release the wiper blade fixing clip by pulling up
and remove the wiper blade from the inside radius of wiper arm.
|
| 4. |

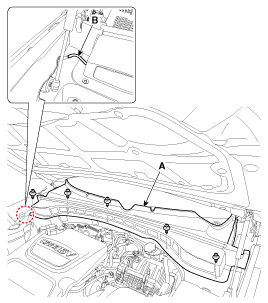

Remove the weather strip and the cowl top cover (A) after removing
retainers.
|
| 5. |
Disconnect the wiper motor connector (A) from the wiper motor
& linkage assembly.
|
| 6. |
Remove the windshield wiper motor and linkage assembly (A) after
removing 2 bolts.
|
| 7. |
Hold the wiper motor crank arm and remove the upper linkage (A)
from the wiper motor crank arm.
|
| 8. |
Remove the lower linkage (A) from the wiper motor crank arm.
|
| 9. |
Remove the crank arm (A) after loosening a nut.
|
| 10. |
Remove the wiper motor (A) after loosening the screws.
|
1. Cap
2. Nut
3. Wiper arm & blade
4. Retainer
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector...
Front Wiper Motor Component Location
1.
Install the wiper motor.
2.
Install the crank arm.
Torque :
12.7-17.6Nm (1.3-1.8, kgf.m, 9.4-13.0 lbf.ft)
...
Front Wiper Motor Installation
