Kia Sorento: Fuel Filler Cap Description
Kia Sorento (XM, 2011-2015) Service Manual / Emission Control System / Evaporative Emission Control System / Fuel Filler Cap Description
A ratchet tightening device on the threaded fuel filler cap reduces the
chances of incorrect installation, which would seal the fuel filler. After the
gasket on the fuel filler cap and the filler neck flange contact each other,
the ratchet produces a loud clicking noise indicating the seal has been set.

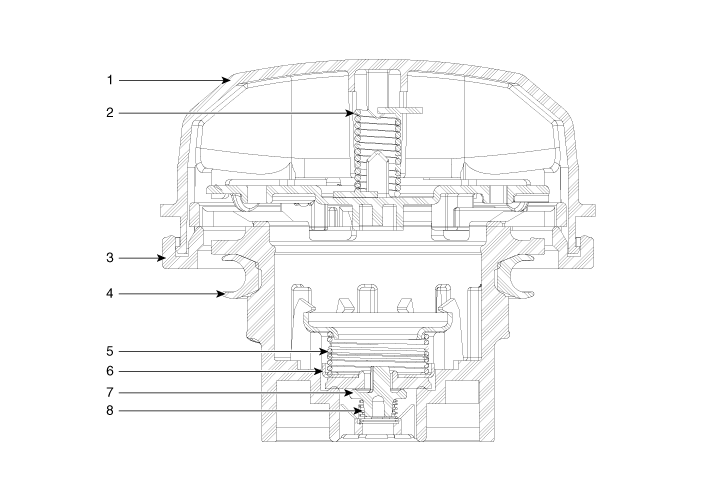

| 1. Cover 2. Torsion spring 3. Retainer 4. Gasket seal |
5. Spring 6. Plate seal 7. Vacuum valve 8. Spring |
