Kia Sorento: General Inspection - Electric Power Steering - Steering SystemKia Sorento: General Inspection

Kia Sorento (XM, 2011-2015) Service Manual / Steering System / Electric Power Steering / General Inspection

After or before servicing the EPS system, perform the troubleshooting and test procedure as follows. Compare the system condition with normal condition in the table below and if abnormal symptom is detected, perform necessary remedy and inspection.
Test condition
 Normal condition: Motor must not supply steering assist.
Symptom
 Possible cause
 Remedy
IG Off
 Motor supplies steering assist.
 ASP is not calibrated.

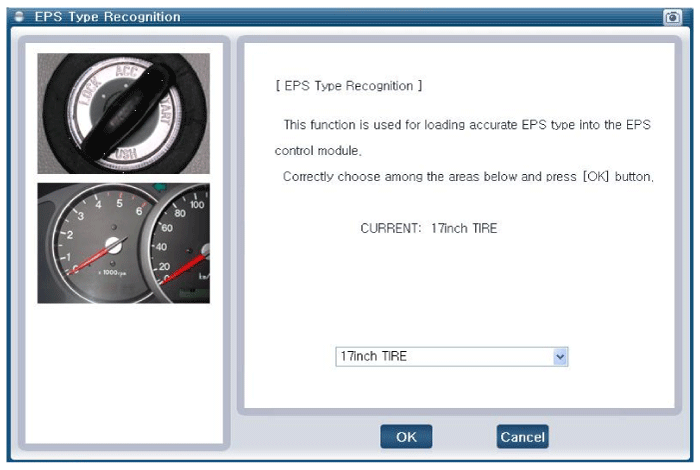

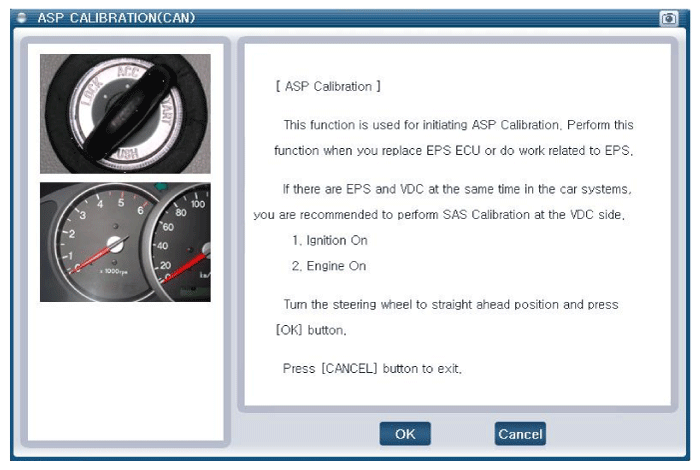

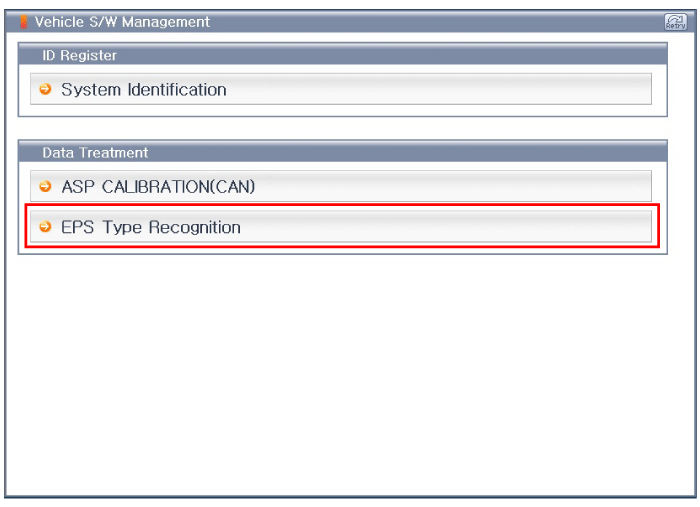

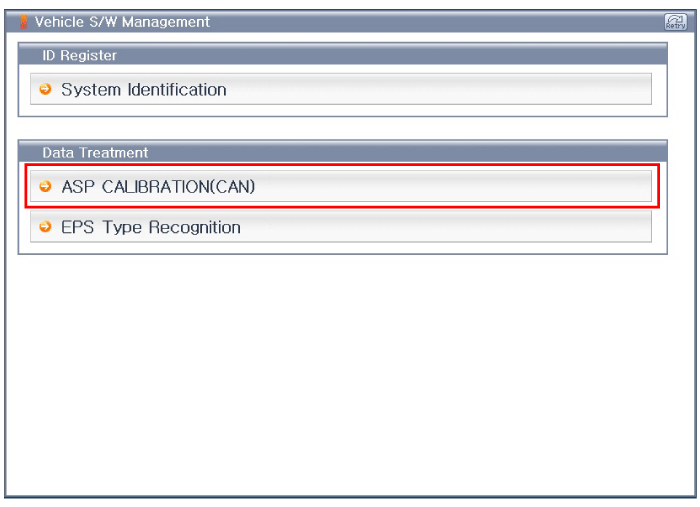

 Perform the ASP calibration using a scan tool.
IG power supplies
 Inspect the IG power supply line.

Test condition
 Normal condition: Motor must not supply steering assist, Warning lamp is illuminated.
Symptom
 Possible cause
 Remedy
IG On/Engine Off
 Motor supplies steering assist.
 ASP is not calibrated.
 Perform the ASP calibration using a scan tool.
EMS CAN signal is not received.
 Inspect the CAN line.
Warning lamp is not illuminated.
 Cluster fault
 Inspect the cluster and cluster harness

Test condition
 Normal condition: Motor supplies steering assist, Warning lamp is not illuminated.
Symptom
 Possible cause
 Remedy
IG On/Engine On
 Warning lamp is illuminated and Motor dose not supply steering assist.
 EPS (Hot at all times) and IG power supply fault
 Inspect the connector and harness for EPS (Hot at all times) and IG power supply line.
DTC is detected by system.
 Perform the self test using a scan tool and repair or replace.
Warning lamp is illuminated and Motor supplies steering assist.
 ASP is not calibrated.
 Perform the ASP calibration using a scan tool.
CAN communication between EPS and cluster is fault.
 Inspect the CAN line.

ASP: Absolute Steering Position
CAN: Controller Area Network
EMS: Engine Management System

The following symptoms may occur during normal vehicle operation and if there is no EPS warning light illumination, it is not malfunction of EPS system.
