Kia Sorento: Head Lamps Component (2)
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Lighting System / Head Lamps Component (2)

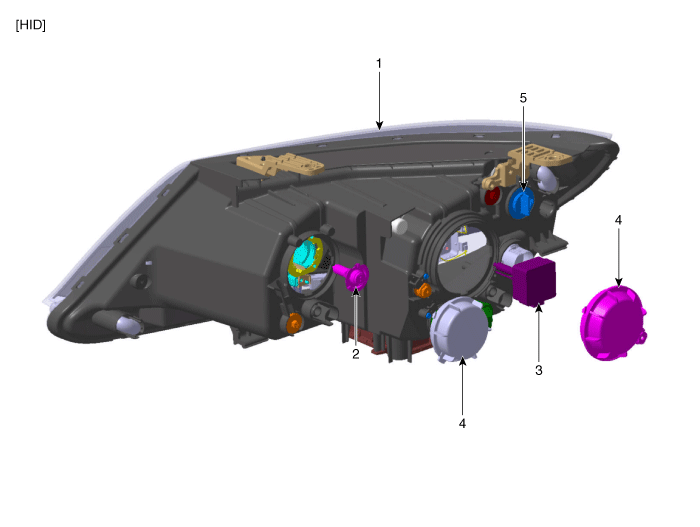

| 1. Head lamp assembly 2. Head lamp high beam bulb 3. Head lamp low beam bulb (HID & ignitor) |
4. Dust cap 5. Turn signal lamp socket & bulb |
