Kia Sorento: Head Lamps Component (1)
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Lighting System / Head Lamps Component (1)

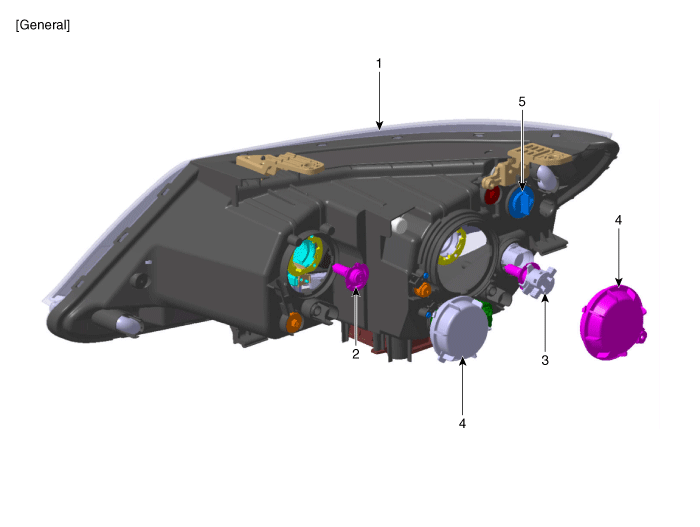

| 1. Head lamp assembly 2. Head lamp high beam bulb 3. Head lamp low beam bulb |
4. Dust cap 5. Turn signal lamp socket & bulb |
Component Location
1. Head lamp (High)
2. Head lamp (Low)
3. Front turn signal lamp
4. Position lamp/ DRL
5. Front fog lamp
6. Vanity lamp
7. Overhead console lamp
8. Room lamp (Sunroof)
...
Head Lamps Component (2)
1. Head lamp assembly
2. Head lamp high beam bulb
3. Head lamp low beam bulb (HID & ignitor)
4. Dust cap
5. Turn signal lamp socket & bulb...
