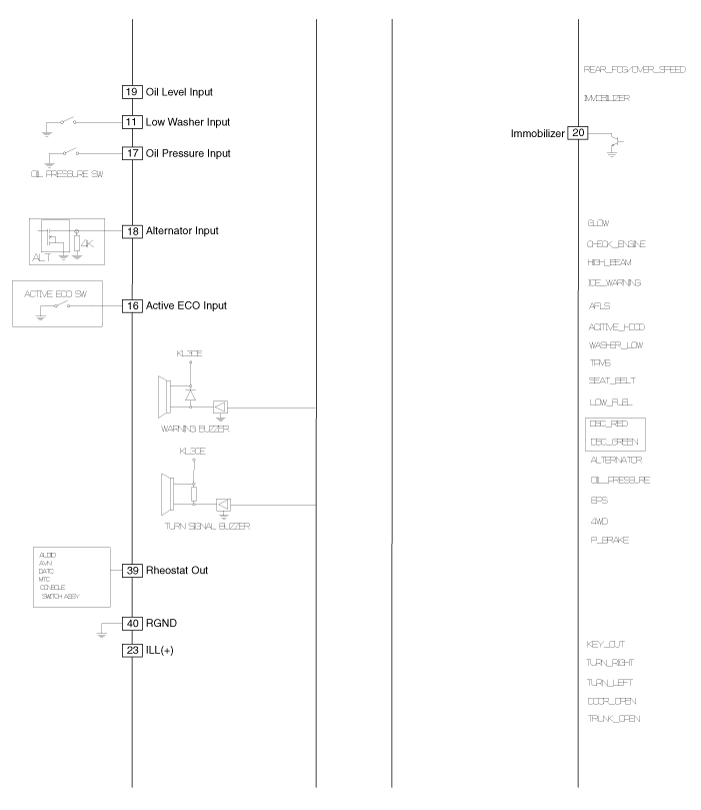

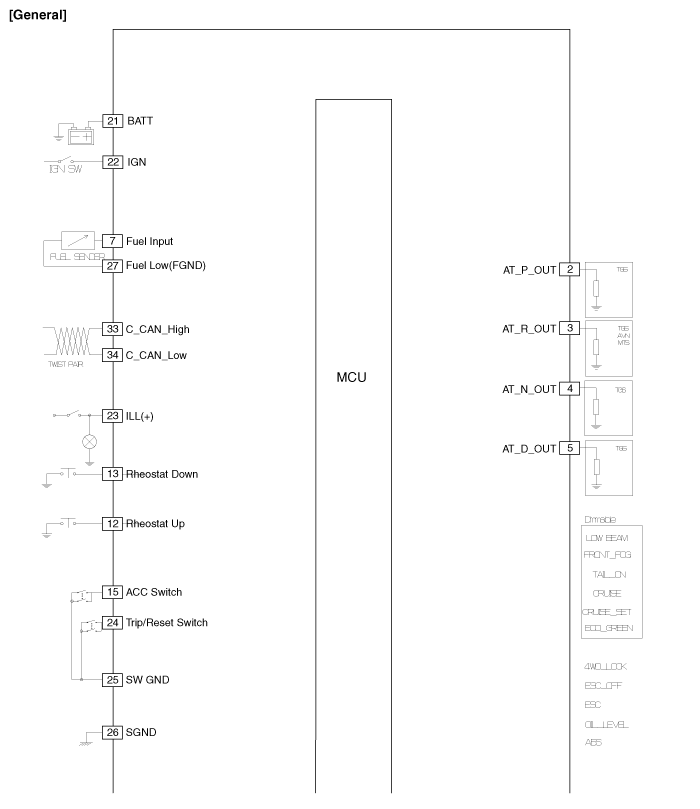

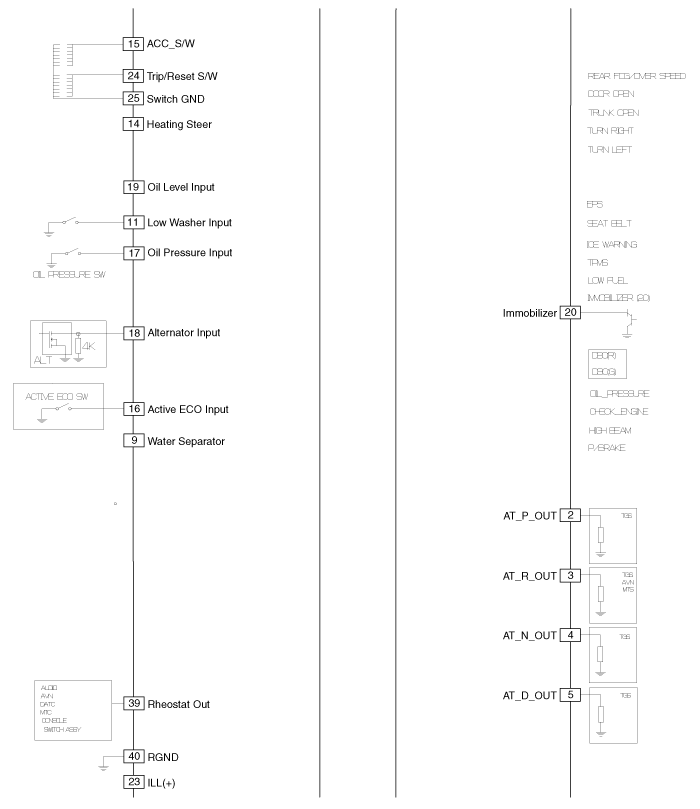

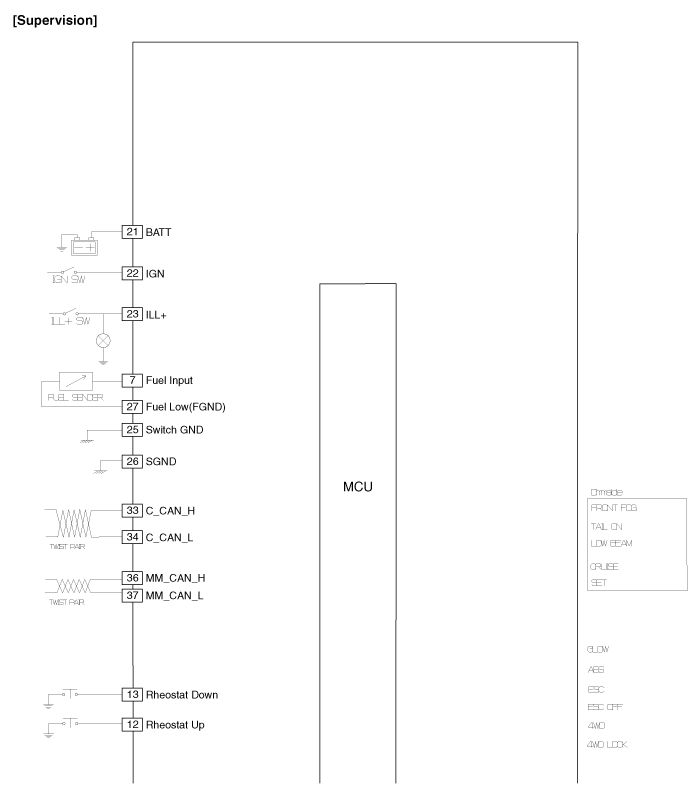

Kia Sorento: Instrument Cluster Circuit Diagram - Indicators And Gauges - Body Electrical SystemKia Sorento: Instrument Cluster Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Circuit Diagram

Instrument Cluster Components
Connector Pin Information Pin No. Description Pin No. Description 1 Airbag supply 21 Battery 2 P (AT) 22 ...
Instrument Cluster Removal
1. Disconnect the negative (-) battery terminal. 2. Remove the cluster fascia panel (A). (Refer to Body - "Crash pad") ...
